Woodstock
Sound Like Jimi.
Price range: $105 through $315

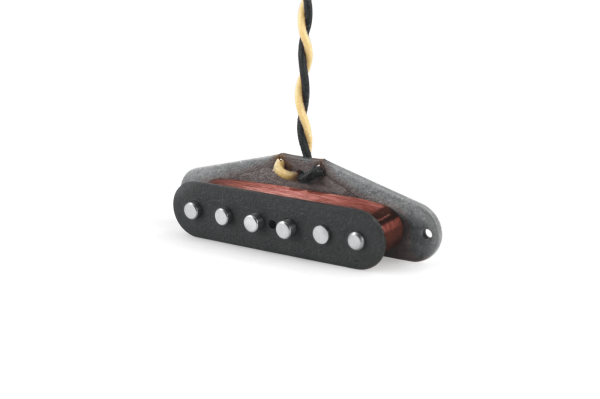

Do you want to sound like Jimi? Well, don’t we all! Our Woodstock, also known in the past as our “Woodstock ’69s”, features a vintage output, a left-handed Tall G stagger, and grey-bottom bobbins. With our Woodstock, you’ll instantly get era-authentic specifications mixed with a little “Jimi Mojo!”
Quick Links
Jump to Sound Clips and more info
A nod to Lindy's favorite guitarist.
Want to learn more about our Woodstock? Here's all the information you'll need:
Features
Woodstock – an era-authentic nod from Lindy Fralin to Lindy’s favorite guitarist – Jimi. Built as a replica of sorts, our Woodstocks feature era-authentic specifications, with one cool tweak – a left-handed “Tall G” stagger. Perfect for any Jimi enthusiasts, this set features a vintage output that’s in line with our best-selling Vintage Hots.
Also, these pickups have classic Grey Bottom bobbins, traditional cloth-wire, and USA-Made 42-gauge plain enamel wire.
- Left-Handed Tall G Stagger for unique responsiveness and tone
- 100% USA-Made Parts
- Wound with USA-Made 42 Gauge Plain Enamel Wire and Grey-Bottom bobbins for an era-authentic look
- Modified Vintage Fender specifications, with modern output
- Bright, clean tone with balance across lows and highs
- USA-made Alnico 5 Magnets for optimal tonal balance and output
- RW/RP Middle for Hum-Cancelling in Positions 2 & 4
- Hand-wound with our “Sectioning” technique for unique, dynamic tone
- Hand-built fiberboard Bobbins for unrivaled quality control
- 10-Year Warranty on manufacturing defects
- 6K Neck & Middle, 6.6K Bridge
Sound & Video
Woodstocks sparkle and sound open. These pickups sound big and full, with an even balance of Bass, Middle, and Treble, clean or dirty. Furthermore, the tone cuts through with distortion – while remaining very dynamic and thick.
Expect a precise low-end and an emphasized acute attack on the treble. Single notes cut through with ease, while chords have an excellent string-to-string definition.
Our manufacturing process allows us to achieve unparalleled quality control. Our Woodstocks consist of locally-stamped fiberboard and USA-Made Alnico 5 Magnets. We wind each pickup by hand, one at a time. We produce our bobbins in small batches and wind each pickup using our proprietary “Sectioning” technique, which gives the pickup a sweet, bright tone.
Finally, we wax-pot the pickup to preserve the pickup and prevent microphonics for years to come!
Sound Samples for Woodstock:
About this Sound Clip:
All sound samples are played from Neck Position First and Bridge Position Last.
Tonal Graph For Woodstock:
The tonal graph below for our Woodstock features Lows, Midrange, Highs, and general Output.
Attack: Bright & Sharp
Videos for Woodstock:
Appearance

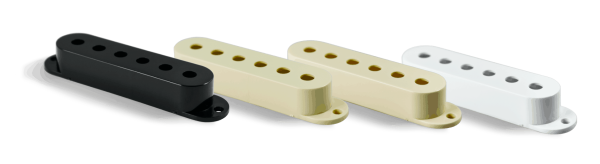

Available Strat Cover Colors
These are the cover colors for our Strat Pickups.
Tech Specs:
See below for the estimated DCR and Polarity Information for our Woodstock.
| SPECIFICATION | VALUE |
|---|---|
| Neck Ohm Reading: | 6K 1 |
| Middle Ohm Reading: | 6K 1 |
| Bridge Ohm Reading: | 6.6K 1 |
| Neck & Bridge Polarity: | Clockwise Coil Direction, South to Strings |
| Reverse Middle Polarity: | Counter-Clockwise Coil Direction, North to Strings |
| Recommended Pot Value: | 250K |
| Magnet Material: | USA-Made Alnico 5 |
| Wire Material: | USA-Made 42-Gauge Plain Enamel |
| Bobbin Material: | USA-Stamped Fiberboard |
| Wax Potted: | Yes |
| Recommended Cap Value: | 0.02mfd 2 |
Additional Technical Info:
1 Ohm Readings can vary due to a multitude of factors, including ambient temperature, multimeter calibration, different wire batches, and other factors. Due to this, ohm readings are approximate. Learn more about Ohm Readings here.
2 We recommend a 0.02mfd Cap Value on most guitar and bass pickups. The exception is a Magic Cap, which Lindy prefers on the Bridge Pickup of Fender® guitars only. Learn More about Caps Here.
Polarity Information:
Here's how we wind and magnetize our pickups:
Note: We depict all our coil directions from Ground (Black Wire, or Start Wire) to Hot (White Wire, or Finish Wire).
Installation Instructions
This install guide covers the installation of our Strat pickups in a standard Stratocaster with a 5-Way Blade Switch. For other installation diagrams, check out our Wiring Diagrams page for all of our Stratocaster wiring configurations, from SSS, HSS, and more.
Most installation jobs are simple enough to perform yourself, but if you are inexperienced or uncomfortable with wiring, take your guitar to an experienced luthier for a professional installation.
Wire Colors
Here's where each color wire goes for each Stratocaster set we sell:
- White = Hot (to switch)
- Black = Ground (solder to the casing of the volume pot)
The image below features different colors for visually tracing the wires, but here's how to wire it up to the switch:
Steps Required For Installation
- Remove the strings and pickguard from the guitar
- Unsolder each pickup lead from the switch and ground
- Once all wires are unsoldered, use a phillips head screwdriver to remove each pickup from the existing pickguard
- Once all pickups are uninstalled, install each new pickup carefully. Damage can occur from rough handling, or the pickup's mounting screws "scraping" the coil wire. Be extra careful on this step and take your time.
- Solder each new wire according to the instructions above, and trim any excess
- Replace the pickguard and test by plugging the guitar into an amp, and performing the "tap test" with a metal screwdriver to test each pickup's output
- Replace the strings and set the pickup height according to this article here.
Pickup Dimensions
Our Strat® replacements are standard Stratocaster sizing and spacing. All string spacings are 52mm.
Woodstock FAQ's
General FAQs
Here are quick answers to common questions we get:
-
What Ohm Readings does your Woodstock have?
Navigate to our Tech Specs Tab for complete Ohm Readings and more useful information.
-
Will this pickup fit my instrument?
Check our Sizing Tab for the size of the pickup. No Sizing tab? Check under the product image gallery for dimensions, or head to our Dimensions Page.
-
Is your Lead Time of accurate?
It depends on the shop capacity at the moment, and the size of your order. Feel free to give us a call for an accurate lead time. We always try to beat our estimated Lead Times.
-
What pickup height do you recommend setting your Woodstocks to?
Our recommended Pickup Height is 1/8" (3.175mm) on the Bass Side and 1/16"( 1.5875mm) on the Treble Side. To measure, hold the correct side down at its highest fret. Then, measure from the bottom of the string to the top of the pole piece.
-
Are your Woodstocks wax potted?
Yes, all of our pickups are potted in USA-Made Parrafin Wax carefully chosen for it's transparent effect on tone.
Product FAQ's
People frequently ask these questions about our Woodstock. If you have a question that you don't see listed here, click "Ask" in the Quick Links section above.
-
Why the left-handed stagger?
To replicate the “Jimi” effect.
-
Why the Tall G stagger?
See above!
-
Can I get this pickup in a Right Handed stagger?
No – if you’re looking for a right-handed stagger pickup that sounds the same, check out our Vintage Hots.
-
What's the difference between the Vintage Hots and Woodstocks?
Aside from the custom “Jimi” stagger on the Woodstocks, the only thing that’s different is the type of wire we use. We use 42g Plain Enamel wire and Grey-Bottom bobbins to give this pickup an authentic classic look. Tonally speaking, the Vintage Hots and Woodstocks are almost identical.
