Understanding D.C. Resistance For Guitar Pickups

Last Updated: April 8th, 2020

D.C. Resistance, or a pickup’s Ohm reading, is not the “Holy Grail” of understanding a pickup’s output – it will give you a rough understanding.

On occasion, we get a customer’s email stating that “their 8.2K Pure P.A.F. bridge reads 8K – What’s Wrong?” The answer is simply “Nothing at all.” There are a lot of variables that can make the same pickup provide different readings. However, there are more important things to take note of – at Fralin Pickups, we count turns rather than rely on ohm readings. Let’s learn a little bit about Ohm readings and what they mean for your guitar’s pickups:


Why Are Ohm Readings Important?

An Ohm reading shows the D.C. resistance of pushing electrical current through the pickup. It does not define the output of the pickup. The output of the pickup is affected by the number of turns of wire, and the magnet strength.

Ohm readings are a useful way of roughly measuring the output between identical pickup designs. This means comparing a Telecaster Bridge to another Telecaster Bridge, or a Stratocaster Neck to another Stratocaster Neck. For example, if you were to take a reading of a Vintage Hot Strat Neck (6K) and compare it to a Blues Special Strat Neck (6.3K), you’ll be able to confidently tell that the Blues Special will give you more output. This is true – the Blues Special has 5% more turns than the Vintage Hot, and roughly 5% more output.

The same applies to Humbuckers, which are normally measured by their ohm readings. A 9K humbucker will be higher output and louder than an 8K.

Ohm Readings tell you if a pickup works or not. If you test a pickup and get a reading, there is continuity in the coil – it works. If you get a reading of 0 Ohms, the pickup is shorted out. If the meter reads “Infinity”, the coil is broken somewhere and your pickup will not work.

Ohm readings can help diagnose problems. When we rewind pickups, we might get an old Strat pickup that has a reading of 50K, when it should read around 6K. We can use that information to tell that there’s corrosion in the coil eating away at the copper, giving it a point of high resistance. This coil would need to be re-wound to be fixed.


Ohm Reading Variations:

There are a few factors that can cause an ohm reading to fluctuate. Here are some of the most common:

  • Temperature: The hotter the pickup is, the higher the ohm reading will be. When we test a pickup when it goes into the wax vs. when it comes out of the wax all hot, the ohm readings are vastly different. Why? As the temperature increases, the ions in the copper wire vibrate more than they do at room temperature, thus collide more with electrons as they flow through the copper wire, giving the wire more resistance.
  • Length of Wire: See above! The longer the wire is (i.e. more turns per coil), the higher the resistance will be. This is how many users test guitar pickup output. Another example is a 5-String Jazz Bass versus a 4-String Jazz Bass. The 5-String Jazz bass is physically longer, and thus the same number of turns will result in very different ohm readings.
  • Diameter of Wire: 42 Gauge Wire (larger diameter wire) will have less resistance than 43 Gauge Wire (smaller diameter wire). For instance, we wind Telecaster Bridges with 42 Gauge Wire, and the Telecaster Necks with 43 Gauge Wire (the bobbins are smaller). Even though the necks have less turns than the bridges, they have a higher ohm reading due to the smaller gauge wire. That does not mean that the neck pickup is louder than the bridge pickup – it just means it has more resistance.
  • Testing Equipment: Depending on the manufacturer, quality, digital vs analog, etc. The way you test the ohm reading could have a significant impact on your reading.
Ohm Readings

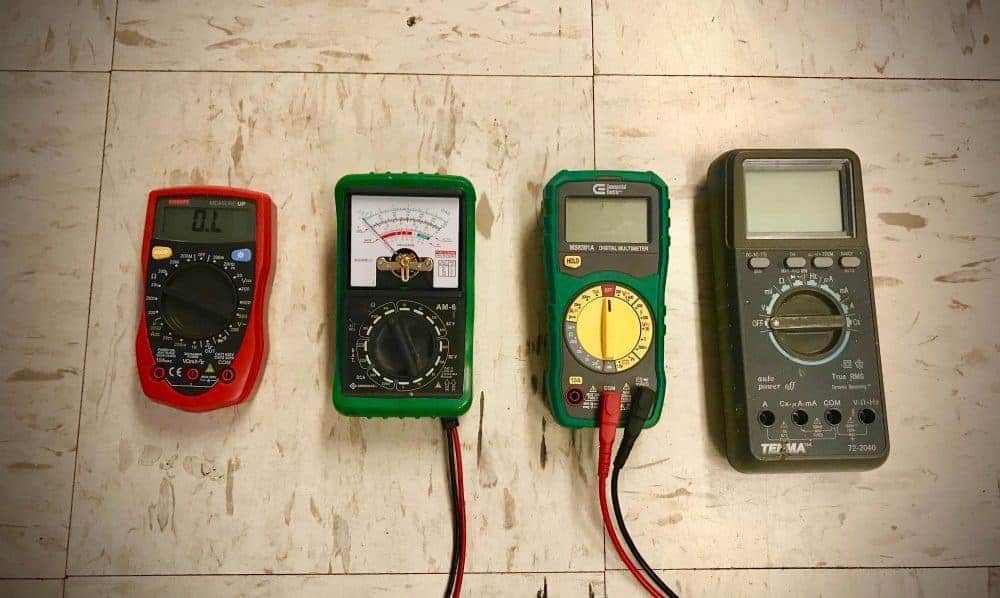

These two multimeters are different styles and manufacturers, and are reading the same pickup. One reads it closer to 8.8K, and the other reads 10K.

COMMON MISTAKES WITH OHM READINGS:

The most common mistake we see people make when using Ohm readings is comparing two completely different pickup designs to each other. For instance, our Stock Pure P.A.F. set reads 7.8K in the Neck, and 8.2K in the Bridge. Our Blues Special Telecaster Neck also reads 7.8K – so they should be equal in output, right? Nope!

The design of the pickup and the amount of turns has the greatest effect on the pickup’s output and tone. For instance, the Humbucker might have two coils wired in series with 42 Gauge Wire, and the Telecaster Neck will have one tall, narrow coil with a 43-Gauge Wire. They might read the same, but their outputs and tone will be completely different.


OHM READING BRASS TACKS:

The number of turns is far more important than the Ohm reading of a pickup. If you got a Pure P.A.F. Neck that was reading 7.7K, rest assured that the correct amount of turns is on the pickup!

Always compare identical pickup designs. We can’t stress the word “Identical” enough – the slightest variation in design can really impact the ohm reading.

Call us when comparing different models. When comparing a Hum-Cancelling P-90 Neck to a Bridge Humbucker, we can narrow down the models that will work best. Call us. We’re here to help.
