Wide Range Humbucker

True '70s Wide-Range Tone

$200$400

  • Hum-Cancelling
  • Clean & Articulate
  • Traditional Appearance
  • Vintage Output

Click For New Soundclips

( 32 genuine reviews)

The Fralin Wide Range Humbucker is a cleaner and more articulate version of the original, with all the clarity and definition you’ve come to expect with Fralin Pickups. Made with USA-Made parts and wound by hand, this will give you an amazing, sweet era-authentic tone!



Options

Customize your Wide Range Humbucker:

Selection Needed

Select Options Above To Display Add-Ons

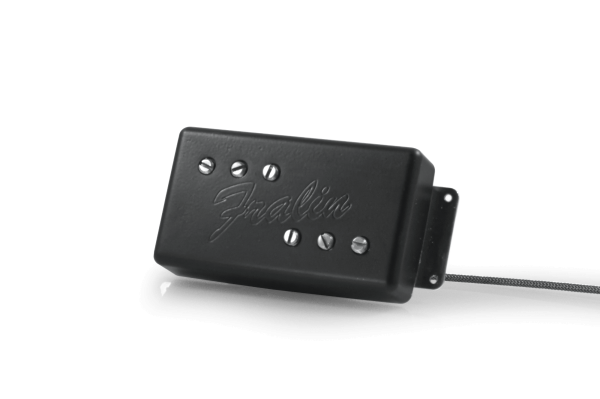

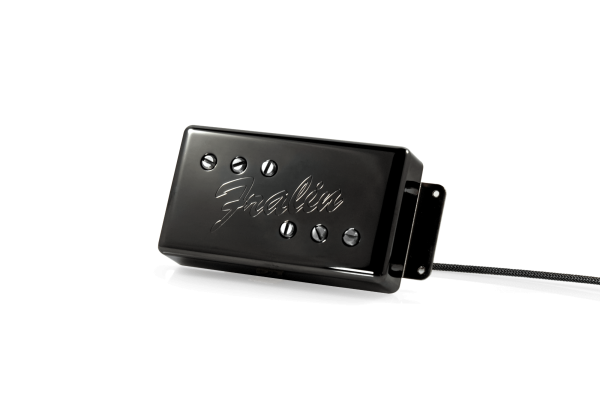

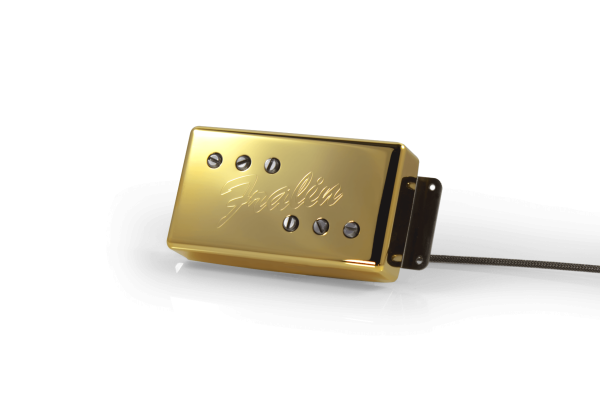

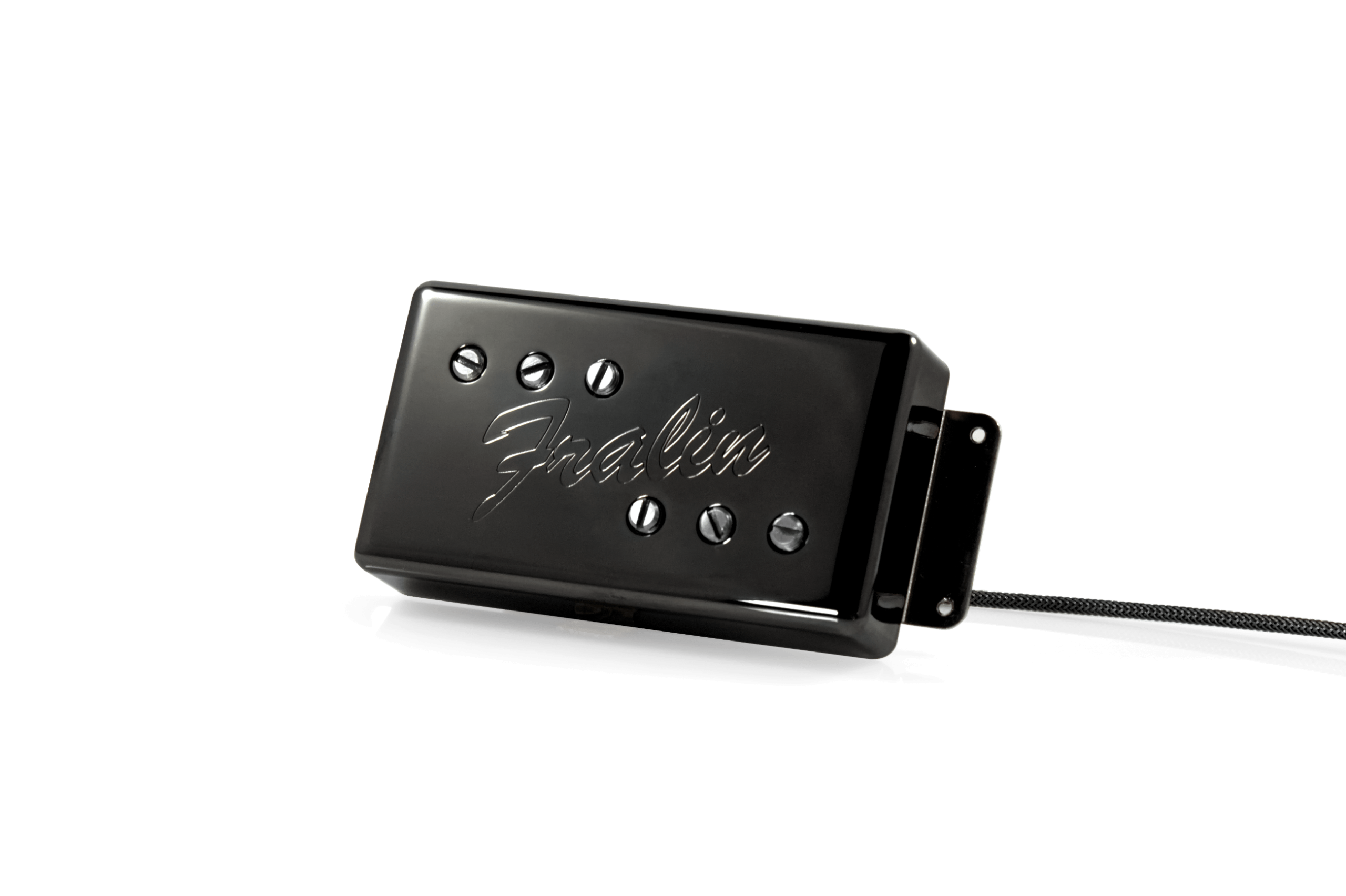

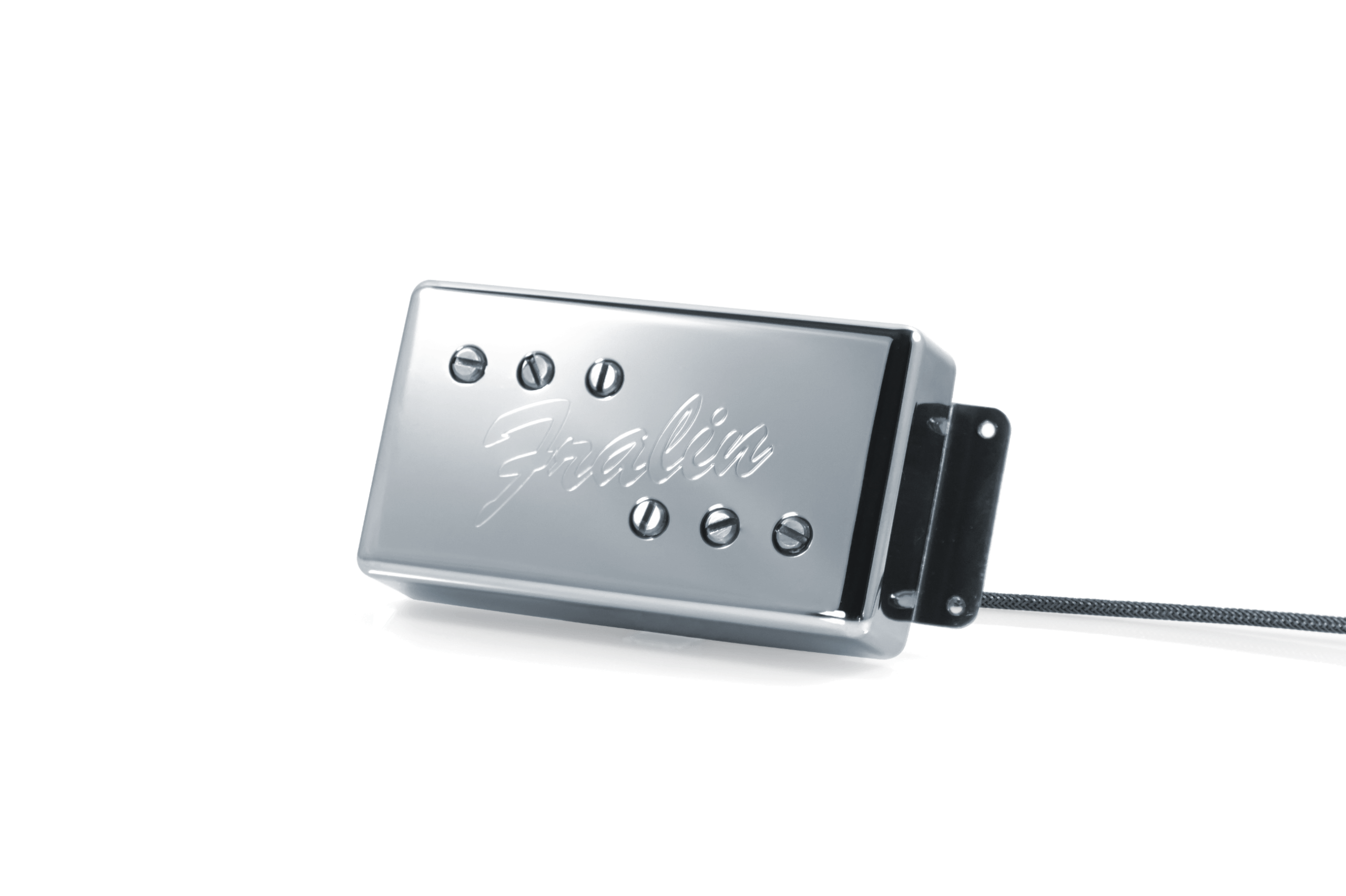

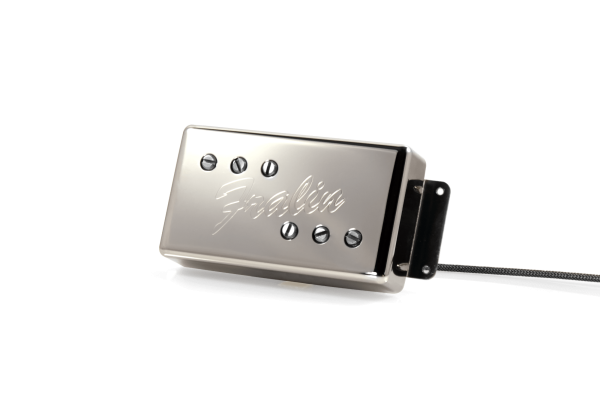

Pickup Cover *

Choose how you would like your Wide Range Humbuckers to look in your guitar

Fralin Branded Covers *

Starting 2024, our Wide Range Humbuckers come with our Logo on the face of the cover, like old Fender® Wide Range pickups. We still have some unbranded covers, while supplies last.

SPEED UP YOUR ORDER

Since you're buying a single pickup, we might need more information from you. To avoid unnecessary delays in your order, please choose one of the options below:


Notice

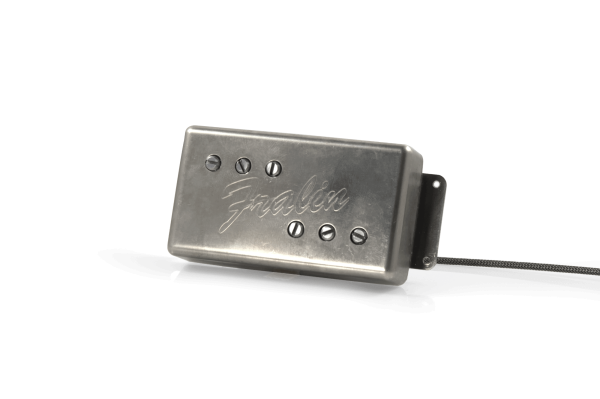

Due to the nature of Raw Nickel, Raw Nickel may contain slight cosemetic defects or abrasions.

Recommendation:

We recommend using 2-Conductor With Shield Lead when purchasing a single pickup. 2-Conductor lead allows you to reverse the phase should you have phase issues. Learn About Lead Choice

Note:
Upgrade To A Prewired Pickguard

Express Checkout

Skip the checkout and buy now. Purchases made through Express Checkout are bound by our Terms and Conditions.

More Payment Options Offered At Checkout:

Share This Product

Share this product with others and spread the love!

Fralin Warranty Stamp

More +

Our commitment to quality is unwavering. We build our products to last and stand by our products and manufacturing process—period. We're so confident in the quality of our pickups that we offer a 10-year warranty against manufacturing defects. This warranty is our promise to you that you're investing in a high-quality, durable product that will stand the test of time.
Fralin Handmade Stamp

More +

Our commitment to quality extends to the materials we use. We make all our pickups by hand, one at a time, in our small, humble shop in Richmond, VA, using 100% USA-made parts. This ensures that we can carefully build, wind, and assemble all our pickups with the utmost care and attention to detail, using only the best materials.
Fralin Exchange Stamp

More +

Experience our exclusive 30-Day Exchange Program, designed to give you the peace of mind you deserve. It allows you to thoroughly test your pickups in your preferred environment, whether it's on stage or on the road. If you have second thoughts about your selection, simply contact us, and we'll ensure a hassle-free exchange for a more suitable set of pickups.

True '70s Wide-Range Tone

Want to learn more about our Wide Range Humbucker? Here's all the information you'll need:

Features

Our Wide Range Humbucker is a modern take on the original classic. Originally built and designed by Seth Lover for Fender, this was the answer to Gibson’s darker-sounding humbuckers. Today, Lindy Fralin took his idea a little further, by making this pickup sweet, articulate, and clear and clean. Our Wide Range humbuckers will drop right in to your guitar, as they are the same fit and finish as the factory ones. This pickup will sound reminiscent of our P-92’s – Bold, but clear and articulate.

Features:

  • Loud, bright, articulate clean tones and smooth, slightly crunchy distortion tones.
  • Same size as the original Wide Range Humbuckers
  • Threaded Alnico 5 Pole Pieces and for top-end sparkle
  • Traditional humbucker design and looks
  • USA-Made Parts, and Wound to spec, one at a time.

Sound

The Fralin Wide Range Humbucker is Clean, articulate, and bright. If you have a darker or dull-sounding guitar, these will breathe new life into it. Lows are big, bouncy and clear like most Fender humbucker designs. The Mids are slightly scooped with an emphasis on the high mids. This pickup is sure to cut through the mix, without sounding brittle, shrill or thin. Playing dirty, this pickup won’t break up as early as traditional humbuckers. It will still sound thick in the low mids and smooth on the top-end. As with all our pickups, we take care to make sure we wind it to your specifications. Want it to sound a little fatter and darker? No problem – we’ll wind it to spec, free of charge.

Lindy photo
Lindy Says...

We set our pole pieces to my specifications at our shop. You can adjust the pole pieces from the top and bottom. If you back the pole pieces away, the pickup gets a little clearer-sounding. Be careful though - don't let the pole pieces touch the cover - you can damage the cover and pickup."

Sound Samples for Wide Range Humbucker:

About this Sound Clip:

All sound samples are played from Neck Position First and Bridge Position Last.

Tonal Graph For Wide Range Humbucker:

The tonal graph below for our Wide Range Humbucker features Lows, Midrange, Highs, and general Output.

HIGHS
MIDS
LOWS
OUTPUT

Attack: Dynamic & Full

Lead Color Codes

See below for our Lead color codes. For help with matching to other manufacturers, check out this resource here.

Gibson Braided Lead

Gibson-Style instruments

Phase Reversible

Coil Splitting

Gibson Braided Lead
Only select Gibson Braided Lead if you install these pickups as a set into a Gibson-style instrument. Examples of a Gibson-style instrument are the Gibson Les Paul, 335, or Telecaster Deluxe. These guitars have two Volume Pots and two Tone Pots.

Note:

Gibson Braided lead is not intended for Telecasters with a Control Plate. If the braiding touches anything, it will short it out.

2-Conductor Lead

Phase Reversible

2 Conductor Lead Fralin Pickups
Choose a 2-Conductor Lead if you are buying a single pickup. Use this lead to connect the pickup to a Blade Switch, like in a Fender-style instrument. 2-Conductor allows you to reverse the phase of the pickup.

Tech Specs:

See below for the estimated DCR and Polarity Information for our Wide Range Humbucker.

SPECIFICATION VALUE
Neck Ohm Reading:9K 1
Bridge Ohm Reading:9.7K 1
Neck Polarity:Reversible With 2-Conductor Lead
Bridge Polarity:Reversible With 2-Conductor Lead
Magnet Material:USA-Made Alnico 5
Wire:USA-Made 42-Gauge Single Poly Nylon
Bobbin Material:Nylon
Baseplate Material:USA-Made Nickel Silver
Cover Material:USA-Made Nickel Silver
String Spacing:54mm
Recommend Pot Value:300K | 500K*
Recommended Cap Value:0.02mfd 2

Additional Technical Info:

1 Ohm Readings can vary due to a multitude of factors, including ambient temperature, multimeter calibration, different wire batches, and other factors. Due to this, ohm readings are approximate. Learn more about Ohm Readings here.


2 We recommend a 0.02mfd Cap Value on most guitar and bass pickups. The exception is a Magic Cap, which Lindy prefers on the Bridge Pickup of Fender® guitars only. Learn More about Caps Here.


300K pots will give this pickup a slightly darker and warmer tone.

Polarity Information:

Here's how we wind and magnetize our pickups:

This is a Hum Cancelling Pickup.

If you're buying a set from us, all pickups will work together seamlessly. If you're buying a single pickup, all you need to worry about is Coil Direction.

To ensure your pickup will work, make sure you select multiple leads (2-Conductor, 3-Conductor, or 4-Conductor if available), or the 3-Wire modification so you can reverse the coil direction, if need be.

Wide Range Humbucker Dimensions:

Fralin Pickups Wide Range Humbucker Dimensions

Wide Range Humbucker FAQ's

General FAQs

Here are quick answers to common questions we get:

  • What Ohm Readings does your Wide Range Humbucker have?

    Navigate to our Tech Specs Tab for complete Ohm Readings and more useful information.

  • Will this pickup fit my instrument?

    Check our "Sizing" tab for the size of the pickup. No Sizing tab? Check under the product image gallery for dimensions.

  • Is your Lead Time of 2 Weeks accurate?

    It really depends on the shop capacity at the moment, and the size of your order. Feel free to give us a call for an accurate lead time. We always try to underpromise and overdeliver.

  • What pickup height do you recommend setting your Wide Range Humbuckers to?

    Our recommended Pickup Height is 1/8" (3.175mm) on the Bass Side and 1/16"( 1.5875mm) on the Treble Side. Measure by holding the corresponding side down at its highest fret and measure from the bottom of the string to the top of the pole piece.

Product FAQ's

These are frequently asked questions about our Wide Range Humbucker. If you have a question that you don't see listed here, click "Ask A Question" in the Quick Links section above.

  • Can you coil split the Wide Range Humbucker?

    While we can technically wire this pickup for coil splitting, we do not recommend it. You’ll be left with a coil with 3 exposed pole pieces, and 3 covered pole pieces, giving you an unbalanced tone. This pickup sounds best in a full humbucker mode.

Get it prewired

Go the extra mile and combine our Wide Range Humbucker with a Telecaster Control Plate!:

Get It Prewired - Lindy Fralin Pickups

Prewired Pickguards

Don't have a Tele Control Plate? Get our Wide Range Humbucker prewired into a '72 Deluxe or Custom Pickguard instead:

Get It Prewired - Lindy Fralin Pickups

Customer Reviews

32 Genuine Reviews for Wide Range Humbucker

  1. SUNG YONG CHO

    This is my first WDRH.
    Wow! Really single sound Humbucker.
    But There is still Humbucker.
    Can’t explain. Just get it on.

  2. Bruce frazier

    Verified Purchase

    All you can ask for perfect in all ways. High Hand custom guitars is using this pickup in all the thin line teles we will make…..Bruce Frazier High Hand custom guitars……

  3. Joel Amsden

    Verified Purchase

    I replaced the stock Japan wide range humbucker in my custom tele with the Fralin. I am blown away by the improvement. This pickup sounds like I’ve always wanted a wide range to sound like. Also, I paired it with the split steel pole tele bridge, and they mate perfectly. Thanks again guys.

  4. HEATH BOWER

    It’s always great to get the man on the other end of the phone to have a sincere just regular dude conversation with. Lindy is always eager to help to make sure you get exactly what you’re after. This is the 5th set of pickups I purchased.. wont be the last.
    So we have these twang masters put into a wide range body. I don’t know how to describe it really… just a really awesome sounding in my opinion, moderately aggressive, single coil that has plenty of bite. Overall tone is round and still linear. My hands and my bad cat hot cat just like these a lot.

  5. Mark Schuster

    Wonderful pickups if they are the same, in the mid 2000s wernt these called split singles, humbucker sized but actually one pickup for the top 3 and one for the bottom 3 kinda sound like p 90s .I loved them but you can’t coil tap these right because it doesn’t contain 2 full coils? Thanks. I’m an old customer. Going to get started again, got I’ll for a while. Mark Schuster, Marks Custom Guitars, Princeton, WISCONSIN.

  6. Danny Thompson

    Verified Purchase

    Made a “72 Fender Telecaster custom” partscaster and wanted a wide range neck pickup that would pair well with a Joe Barden bridge pickup and after doing some research I opted for the Fralin and I was not disappointed! But be warned this is a very high output pickup. Take that into consideration with what you are pairing it with.
    It has a brighter tone than the original CuNiFe pickups, which for me was a good thing.

  7. Koji

    Verified Purchase

    Great pickups. Looks cool and sounds great. My guitar has been reborn.

  8. ben

    Verified Purchase

    Beautiful pickup. Paired with a Split Steel Poled Tele pickup. Sounds amazing. Set the heights on you pickups, it will open them up!

  9. Daniel Meyer

    There are two Fralin Wide Range Humbuckers on my Deimel Firestar and i love it. They are clear, have a beautiful texture and it is pure joy to play them.

  10. Karl Maciag

    Verified Purchase

    Wow what a difference! My 72′ Tele Deluxe RI was a gift from my wife, but I found myself playing it less and less as it sounded dull and muddy compared to my other guitars that had either nice vintage pickups, or modern boutique pickups. After putting in the Fralin Wide Range pickups, it’s like having an entirely different guitar. The bridge pickup is full, with a bright top end that isn’t ice-picky. The mid range has a texture I’ve never heard out of this guitar, and the bottom end has all the growl I want. The neck pickup is warm, smooth, and has amazing clarity. I’m amazed at how much I’m playing the neck pickup now in this guitar. These pickups took an old favorite guitar and gave it new life! If you have one of the reissue guitars with the wide-range pickups, don’t think any more about it, buy them and get them in ASAP!

  11. Tom Coplen

    Verified Purchase

    Amazing! Unbelievable clarity. Rich and “chimey” yet warm and smooth at the same time. Couldn’t be happier!

  12. Eric Graham

    Fralin knocks it out of the park. These are the best Wide Range pickups ever made. While Fender dithered for 40 years waiting for a new source of CUNIFE magnets Lindy said ‘Hold my beer’ and got it done.

    Lindy took industry standard materials and crafted a clear, clean, articulate, and exquisitely loud wide range humbucker. The sound of these is true to the original. While sound can become a bit subjective, sustainability and cost is not. Lindy used industry standard parts easily sourced from USA manufacturers to build a boutique quality pickup at a lower cost.

    Do you want to pay less for a wide range humbucker that sounds better than the original? My answer was yes.
