Alnico Noiseless P90 – Humbucker

  • Hum-Cancelling
  • Clean & Articulate
  • Unique Appearance
  • Vintage Output

Lindy Fralin Original Design

(28 genuine reviews)

$165$330

Achieve thick, warm, dynamic tones with our Alnico Noiseless P90 Humbucker. This pickup is completely hum-canceling and features a familiar Fender top-end sparkle.

PRODUCT OPTIONS:

Please Select Options Above To Display Add-Ons.

Pickup Cover *

Choose how you would like your pickup to look with our USA-Made Nickel Silver covers. Covers are required on this model.

SPEED UP YOUR ORDER

Since you're buying a single pickup, we might need more information from you. To avoid unnecessary delays in your order, please choose one of the options below:


Notice

Due to the nature of Raw Nickel, Raw Nickel may contain slight cosemetic defects or abrasions.

Recommendation

We recommend using 2-Conductor With Shield Lead when purchasing a single pickup. 2-Conductor lead allows you to reverse the phase should you have phase issues. Learn More

Lead Time

A Lead Time of 2-3 Weeks is just an estimate. Lead Times are subject to change depending on the current shop capacity and size of the order. We will always try to complete your order quicker than the stated lead time.



Fender Tone, P90 Looks.

Want to learn more about our Alnico Noiseless P90 - Humbucker? Here's all the information you'll need:

Alnico Noiseless P90 – Humbucker FEATURES:

  • Alnico Rods for a Fender-type sparkle

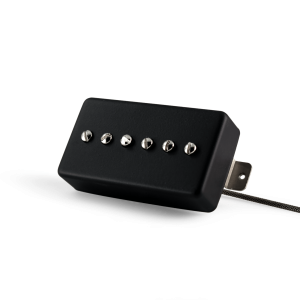

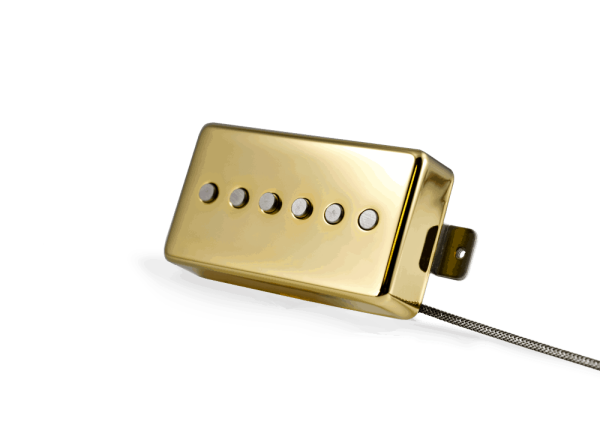

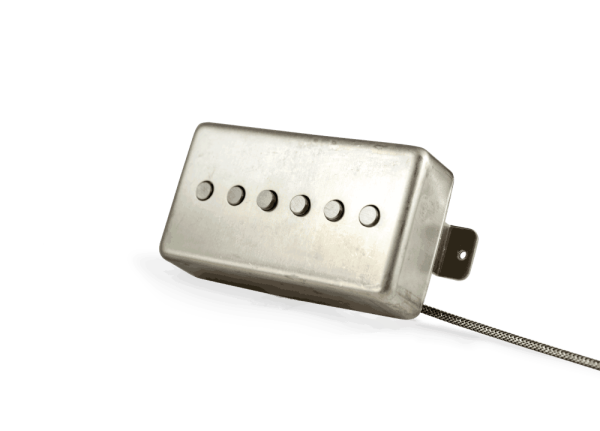

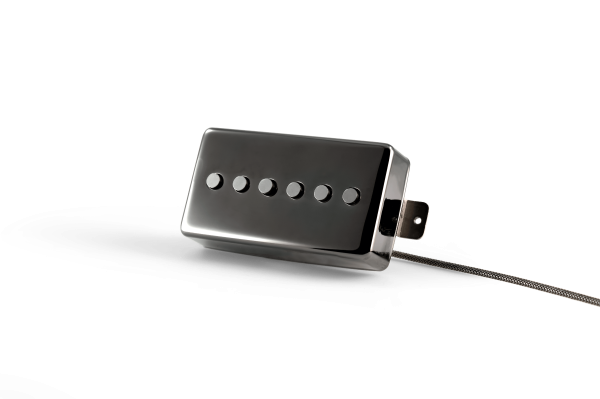

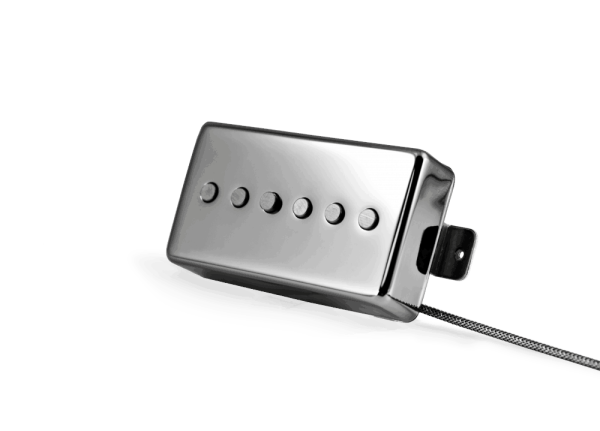

  • Humbucker housing available in Polished Nickel, Raw Nickel, Gold, and Jet Black Nickel Covers
  • Hum-free design for completely noiseless operation
  • 49.5mm Standard Spacing works on Gibson-style instruments as well as Fender Neck spacings.
  • Wound by hand using our proprietary sectioning technique for a sweet, clear tone
  • Wound with USA-Made 42 Gauge SPN Wire
  • 10 Year Warranty against manufacturing defects
  • Wax Potted to prevent microphonics and corrosion

Overview

The Alnico Noiseless P90 Humbucker is the perfect pickup for those looking for a cleaner, more articulate tone in a Humbucker Cover. Even though we call it a P90, it’s not quite a P90: it has an airiness and sparkle not found with adjustable pole pieces. Also, it’s great for those looking to balance a dark guitar. You’ll find that this pickup stays clean, while still having a fat, beefy midrange and thickness commonly found with P90 pickups.

Sound

The Alnico Noiseless P90 Humbucker will not sound like a traditional P90, but one with a familiar Fender sparkle on the top-end. Clean and articulate when playing without distortion. You’ll find that the nuances of your playing will come out as this pickup “breathes” more than it’s compressed P90 counterpart. Chords have an excellent string-to-string definition, and single notes are round and warm. With distortion, you’ll find a breakup that is late and smooth with a familiar Fender Strat-type tone.

Our Alnico Noiseless P90 Humbucker features a pronounced midrange as well. You’ll find that the Alnico Hum-Cancelling P90 Humbucker will still sound fat and warm. The midrange is softer than a P90, but this pickup is fatter and warmer than our Big Single and Twangmaster.

Are you looking for more of a traditional P90 tone? You won’t find that here. This model features a more “Fender” quality to it. If you’re looking for a traditional P90 tone, check out our P90 and Hum Cancelling P90!


Tonal Graph for Alnico Noiseless P90 – Humbucker:

The tone graph below for our Alnico Noiseless P90 – Humbucker features Lows, Midrange, Highs, and general Output.

HIGHS
MIDS
LOWS
OUTPUT

Attack: Bright & Sharp

Video

Take a listen to our friend Mike Hermans use our Alnico Noiseless P90 in the neck position of his Tele:



Check out the comparison between a regular Hum Cancelling P90 and the Alnico Rod P90:





Tech Specs

See below for the estimated DCR and Polarity Information for our Alnico Noiseless P90 - Humbucker.

SPECIFICATION VALUE
Neck Ohm Reading:8.8K
Bridge Ohm Reading:10K
Neck Polarity:Reversible with 2-Conductor With Shield Lead
Bridge Polarity:Reversible with 2-Conductor With Shield Lead
Magnets:USA-Made Alnico 5
Wire:USA-Made 42-Gauge Single Poly Nylon
Baseplate & Cover Material:Nickel Silver
Baseplate Leg Depth:6mm
Recommended Pot Value:500K / 300K **

*Due to the unique design of this pickup, ohm readings are not useful when comparing to other designs | ** Use 300K to tame a bit of the top end.

FAQs

  • What’s the tonal difference between this and your Hum-Cancelling P90? The Hum-Cancelling P90 is slightly louder, darker, and thicker. This pickup will sound not as much like a P90, more like a Fender pickup.
  • What lead do I choose? This depends on your guitar and a few other things. Gibson Lead: Go with this if installing a set into a Gibson-style instrument, where each pickup has its respective volume pot. 2-Conductor: Go with this lead if buying a Single, or fitting into a Fender-style guitar.
  • What’s the String Spacing? 49.5mm
  • How far away from the strings does the pickup need to be? Push your Low E String down at the highest fret. Measure from the top of the pole piece to the bottom of the string. The ideal starting location should be 1/8? on the bass string and 1/16? on the treble string, when the High E string is pushed down at highest fret.
  • Wiring Diagrams? Here!

Sizing

Humbucker Dimensions

Lead Color Codes

See below for our Lead color codes. For help with matching to other manufacturers, check out this resource here.

Gibson Braided Lead:

2-Conductor With Shield
Gibson Braided Lead - Use on Gibson-Style Instruments only, where each pickup has it's own respective volume and tone pot. Do not select this lead on Fender-style instruments, unless the instrument is wired like a Gibson, like a Telecaster Deluxe. This lead is non-reversible. You cannot split the humbucker with this lead.

2-Conductor Lead:

2-Conductor With Shield
Two-Conductor Lead - Select this lead if wiring to a Blade Switch or buying a single pickup. 2-Conductor allows you to reverse the phase of the pickup.

Alnico Noiseless P90 - Humbucker Questions And Answers:

Have a question about our Alnico Noiseless P90 - Humbucker? Ask it here. Your Question will be publically visible.

If you want to ask a Private Question, please contact us through our Contact Us Form.

If you have multiple questions, please call us at (804) 358-2699.

    Hi ! Just a question out of curiosity : I just noticed that on the set I received the magnets under the D string are beveled whereas the others are not, what is the reason/purpose to that ?
  1. Q Hi ! Just a question out of curiosity : I just noticed that on the set I received the magnets und...... Read more
    A

    Hey Christophe, the beveled D is just how we designed the pickup for optimal tone and looks. Also, Lindy always likes to bevel a magnet the taller it gets.

  2. What do you think about putting the alnico noiseless p90 in the neck position of a michael tuttle classic s HSH ? I’m looking for more character and classic strat neck tone versus the original humbucker which is kind of dark and muddy.
  3. Q What do you think about putting the alnico noiseless p90 in the neck position of a michael tuttle...... Read more
    A If you're looking for a classic Strat tone, the Alnico noiseless P90 will certainly give you that tonality.
  4. Can you order the Alnico noiseless P90 with flat pole pieces instead of the standard raised one?
  5. Q Can you order the Alnico noiseless P90 with flat pole pieces instead of the standard raised one?
    A

    Hey John, yes - please use the "notes" field on the checkout screen to request and we'll do it at no additional charge.



  6. Hi, I just received one of your Humbucker sized P90 pickups for the neck of my Les Paul. One of the middle pole pieces sticks up higher than the other. Is that supposed to be that way and do I turn the pickup so that pole is under the G or D string? This is my first experience with a P90 so pretty clueless. Thanks
  7. Q Hi, I just received one of your Humbucker sized P90 pickups for the neck of my Les Paul. One of t...... Read more
    A

    Hey Steven, the Raised magnet goes under the D String.



  8. Which pot resistance do you recommend for the P92 pickups? 250K or 500K? Also do you have a recommended tone cap value and would they be the same for bridge and neck?
  9. Q Which pot resistance do you recommend for the P92 pickups? 250K or 500K? Also do you have a recom...... Read more
    A

    Hey Jim, we recommend 500K pots with our Alnico Noiseless P90s and P-92s. For the tone cap, we'd recommend 0.02mfd to start.



Heads Up! Asking a question here will be public to all users of this site.

Hey! Did you already ask a question on our Contact Us Form? Don't ask it again here. Please be patient while we get back to you.

Send me a notification for each new answer.

CUSTOMER REVIEWS

28 Genuine Reviews for Alnico Noiseless P90 – Humbucker

  1. Mat
    Verified Buyer

    I was looking for a “strat on steroids” sound for the neck slot in my s2 McCarty and this delivers in spades. 60 cycle hum is incredibly quiet, better than some traditional humbuckers I’ve used over the years.

  2. Henri Guay
    Verified Buyer

    I’m new to the aftermarket pickup game…, but think I must have started in the right place. The Fralin humbucker-sized alnico P90 found a home as the neck pickup in my G&L ASAT Bluesboy, making it one of my favorite guitars to pick up and play. I’d try to describe the sounds, but probably end up coming off like somebody who was trying too hard (although I’m convinced that “oozing electified butter” would be an appropriate descriptor…, but I digress). All to say: you’ll feel you made the right decision the moment you first hit the strings. Thank you to the entire Fralin Team. You guys and girls rock. ??

  3. Christophe Mikovic
    Verified Buyer

    If my review had to be in a single word it would be : WOW !!!
    I was looking for humbucker routed pickups that would get as close as possible as Jazzmaster’s pickups and was advised the Alnico Noiseless P90. Jon, who kindly answered my many many questions and guided me through my hesitations, told me that they “fall somewhere between P90 and Jazzmaster type of sound” and that is exactly it. Those pickups are really more on the Fender side than on the P90’s one (so if you really are after that exact sound these are not for you), but in the same time they are more beefy than traditional single coil pickups without losing any clarity or being overwhelmingly beefy and mid-rangy.
    To sum up the Alnico Noiseless P90 really are “best of both worlds pickups”, they are not P90s, they are not Jazzmaster or other traditional Fender single coils, they are kind of all that at a time ! I do not know how Lindy came up with this wizardry but what I do know is that my search for pickups for my humbucker routed Jazzmaster is over !

  4. dick garfield
    Verified Buyer

    The P 90 has great clarity and smoothness. I am very pleased with the sound. I plan to add more Lindy Fralin pickups to other guitars in the near future. Thanks Lindy.

  5. Vicki Silbert
    Verified Buyer

    Incredibly warm sounding pickup. Really fattens up the tone in my ultralight guitar. Love that Lindy experiments and comes up with original pickup ideas!

  6. Andrew Shepherd
    Verified Buyer

    What can I say….it cured my guitar of a stuffy nose. 🙂

    I’d obviously heard many great things about Fralin pickups over the years but they were a bit out of my price range then, a couple of years ago I was building a LesCaster (Les Paul flat slab body routed for Telecaster pickups and managed to nab a second hand Fralin Blues Special for the neck……and I was blown away.
    Great sparkle while not being too shrill, even though that guitar has no volume or tone pots just the toggle selector and a 220k resistor to ground.

    The only guitar I own that was built by an actual guitar company is an original run 2003 Gibson Les Paul Voodoo and it’s always been a bit of a problem child.
    I love the feel of it but the stock pickups were way too hot and though I went through many different pickups over the years (EMG ZW set, Duncan P-rails, Duncan\dimarzio P.A.F.s, etc) it was always a bit flabby in the neck on the wound strings.
    The best point I got too was with a cheap Tonerider Rebel 90 set (for the price they’re actually pretty impressive pickups) but the neck was still a bit muddy on the low strings and a bit too plastic mids on the high strings and they were pretty noisy ith higher gain setting, which is understandable for standard P-90’s.

    Then I decided not to skimp anymore.
    Replaced the bridge with a SUHR Thornbucker and saved up to order Lindy’s Alnico Noiseless P-90, largely due to Fralins description and suggestion that it’s a “good choice to balance a darker guitar”.
    For me that was completely accurate.

    The neck pick up is now clear with a gorgeous sparkle and though it is still a warm sound the low strings a far more focussed and clear, getting just enough of that throaty Blues Special “zing” that I fell inlove with on the LesCaster while still keeping enough of the gruntier P-90 sound.
    It’s also DEAD quiet and I do mean DEAD quiet!
    On my lead sound (Xotic SL Drive pushing into Slash style gain levels) the Alnico Noiseless P-90 is quieter than the SUHR Thornbucker humbucker thats in the bridge.

    The only issue I have is that the two pickups don’t pair well. I’m assuming that’s just a matter of the magnets opposing so a coil split option may work.
    Having said that, I don’t feel the need for the middle position anymore.
    I used it a lot with the toneriders to put a bit more clarity into the neck sound but the Fralin P-90 does such a great job on it’s own that it’s really not necessary and makes swtching between neck/bridge/neck way better for me (I’m pretty unrefined in my switching technique, I kind of just swat the toggle up or down so being precise enough to get the middle position was always very frustrating).

    Also, I’m using it without any volume or tone controls (I never touched then anyway so just decided a few years ago to take them out completely) just pickups->toggle->output jack and it’s not too shrill at all which I’d say suggests it would work just as well in a brighter guitar with appropriately paired volume pot.

    In conclusion, for me this pick up has solved a nearly 20 year battle with my favourite guitar to get it’s true voice out and make it sing.
    I knew the voice was there (despite many people hating on the Voodoo series) I just needed to find it and Fralin helped me do that perfectly.

    Thanks very much to you all1!
    I will definitely be back for more when I’m building my next guitar.

  7. T
    Verified Buyer

    Great pickup with good clarity and tone! My wife approves!

  8. Stewart Cohen
    Verified Buyer

    I think the description and other reviews have covered most of the lovelies about this pickup, but there’s a little to add. In addition to the big, clear, articulate, balanced, uncompressed and natural tone this pickup captures, it’s worth mentioning how well it sounds through a variety of pedals. With tube overdrive, I get a wonderful singing tone with half the gain I need for other pickups. Most notably this pickup holds solid tone through a range of phase, delay, chorus and other ambient pedals that often mask tone. I have this as a neck pickup in an Ibanez Custom 335 style guitar, with a P-92 in the bridge for a little snarl. With some light compression and good EQ, this sounds very much like a classic P90 which sounds great for jazz, but you can’t really decompress a P90 to make it sound like this one. I am thinking that this pickup might be better thought of tonally as a variant of a Dynasonic, or Supro gold foil pickup, but just “bigger”. So glad it’s in my fleet!!
