4 Unique HSS Strat Wiring Tips For More Versatility

Hey there! We’re sorry it’s been so long since we’ve written – we’ve been incredibly busy at the shop. Today, we’re talking about Strats with a Humbucker in the Bridge (HSS)! There are a few tips and tricks for interesting HSS wiring, so read on!

HSS Strats are amongst the most versatile Strats out there, but they can be tricky. They involve a Humbucker in the Bridge and a Single Coil in the Neck and Middle. If you’ve played around with mixing single coils and humbuckers, you know it can be tough to get the two different designs to play together nicely.

Humbuckers tend to sound best with 500K pots, whereas Single Coils sound best on 250K Pots. Furthermore, the outputs and designs of each model are vastly different and can sound out of balance when switching between pickups.

That said, there are a lot of options when choosing pickups for an HSS Strat. You can opt for higher-output single coils, like our High Output or Steel Pole 43s, which sound great on 500K pots. Or, you can use our Split Blades – which in the Blues Output sounds like a Single Coil on 500K pots. Lastly, you can use 500K resistors to achieve a compensated set (see below).

If you haven’t already, check out our article on mixing Single Coils and Humbuckers. Now, let’s get into some fun HSS Strat Wiring Tips & Tricks:

HSS Wiring tip # 1: Coil Split with a Push-Pull Pot

Let’s start with the basics. We’ll begin by splitting the Humbucker with a Push-Pull pot. If you’re new to coil splitting, we have a whole article on how to coil split and how coil-splitting works. There are a few pros to this setup:

  1. Independent control over your Bridge pickup – you get to choose whether you want a full-strength humbucker or a single-coil, with one pull and push of the switch.
  2. Although the diagram below features a Bridge Tone for Tone 2, you can opt for a Blender Pot, to achieve “Telecaster” tones in Single Coil mode by choosing the Neck & Bridge together.
HSS Strat Wiring with Push-Pull Coil Split
HSS Strat Wiring with Push-Pull Coil Split, a Master Tone, and a Bridge Tone.

HSS Wiring Tip #2: Coil Split with the 5-Way Blade Switch

Sometimes, you need to split your Humbucker but can’t use a Push-Pull pot or don’t like using Push-Pull Pots. You can split your Humbucker automatically using the 5-Way Blade Switch in position #2:

HSS Strat Wiring with Coil Splitting your Bridge Pickup with a 5-Way Switch & Blender Pot
HSS Strat Wiring with Coil Splitting your Bridge Pickup with a 5-Way Switch & Blender Pot

With this setup, Position 1 is your Bridge Humbucker Mode, while Position 2 Automatically splits the Humbucker and connects it to the Middle Pickup. Doing so gives you the famous Strat “quack” tone in position 2 – a staple Strat tone.

Coil Split with a Blender Pot (Gradual Tap)

The Gradual Tap is an exciting way to coil split a humbucker in an HSS Strat. It involves a Blender Pot that gradually connects your Humbucker’s slug coil to ground:

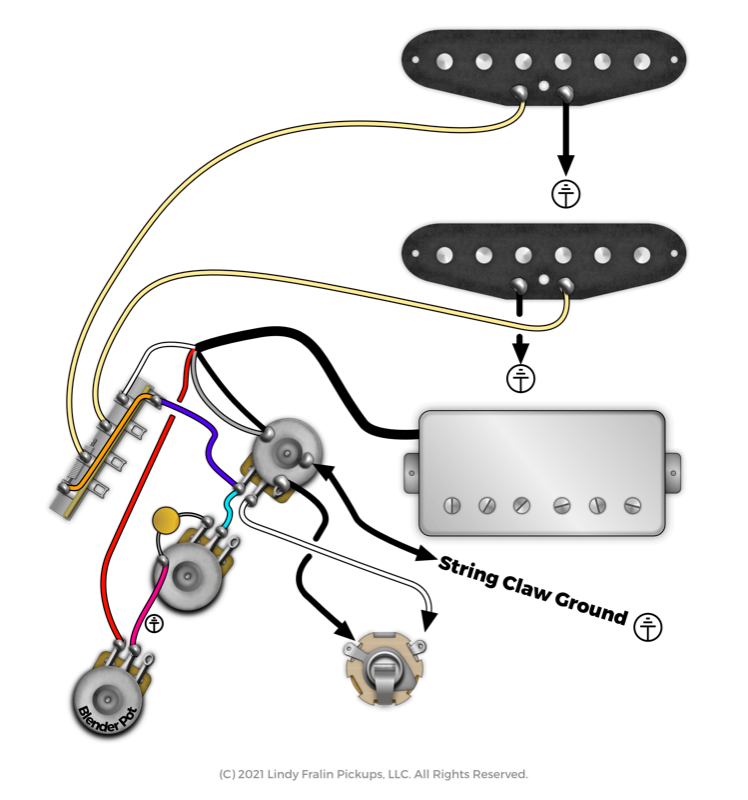

HSS Strat Wiring with a Blender Pot as a Gradual Split
HSS Strat Wiring with a Blender Pot as a Gradual Split

This wiring setup is a fun way to blend between the tones of your Humbucker, allowing you to choose how much of the full-strength Humbucker or split-coil tone you want to use.

It works by gradually connecting the Slug Coil to ground instead of “flipping a switch” with a Push-Pull pot. This mod only works when you are in the Bridge Position.

Using Resistors

This diagram doesn’t involve Coil Splitting; however, it does solve the issue of using two different pot values. As mentioned before, Single Coils tend to sound best on 250K pots, and Humbuckers sound best on 500K.

Read more on pots and how they work here

Using 500K Resistors to solve the famous HSS problem
Using 500K Resistors to solve the famous HSS problem

To use this setup, you need the following:

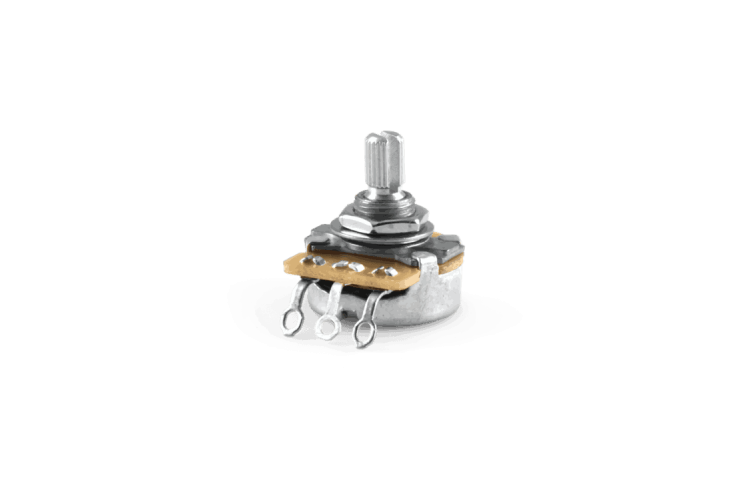

  1. 1x 500K Volume Pot

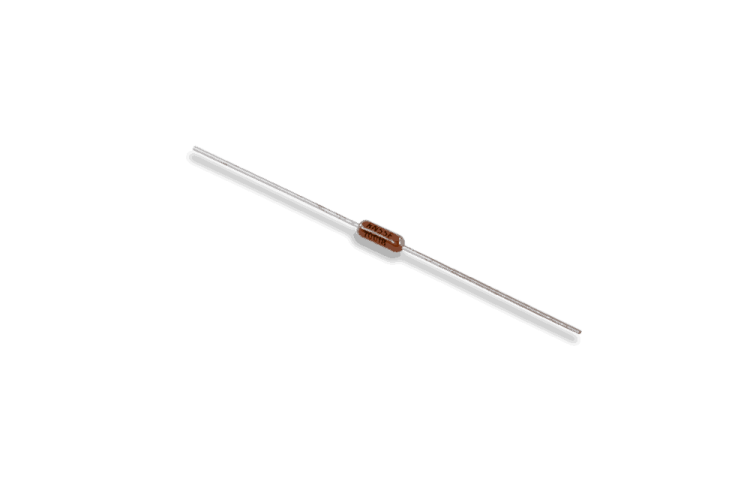

  2. 2x 500K Resistors
Lindy photo
Lindy Says…

If you can’t find 500K resistors, 470K is a perfect substitute!”

When you select the Bridge Humbucker, its signal travels through a 500K pot, ideal for the Humbucker. When choosing the Single Coils, their signal goes through a 500K resistor (to ground) and the 500K pot, letting them “see” 250K! This mod isn’t perfect as the resistors can affect the taper of the volume pot, but give it a try!

Comments

12 Comments For This Post

  1. Did you ever try adding series resistance to the humbucker (rather than parallel resistance to the single coils), with a 250K volume pot? Of course it would drop the volume of the humbucker somewhat, but that might not be a bad thing, and even 100k might be enough to keep it from being too dark. I’m thinking of trying that, just wondering if there’s former art…? Thanks for an informative article – I’ll definitely give Tip #2 a try.

  2. Jack J Terranova

    i have a model 4 charvel and removed 1200 mid boost installe 1-hum pearly gate 2- lil demons and i want to have each switch control pick ups on off just like a strat but using the 3 mini switch. cant find the correct diagram.

  3. To the people who are pissed and always expecting more… U know what kind of pick ups u have, look up the color codes for your pickup then u can relate what an article is telling you to what you have and things will actually work. Using an import pickup selector switch isnt gunna work. Its why theyre cheap. First off, They dont have the throws needed to wire ur pickups in any way besides standard. Maybe try to learn the basics about what your doing, instead of bitching at some dude who took the time to write this shit just to get your shitty feedback. Or just hit me up and ill wire ur guitars for you [email protected]. i need the cash anyways so ya dont learn anything just let me do it. Great article btw. Im having trouble finding blend pots without 2 rows of lugs. Who has them with just 3?

  4. Phineas E Whittenburg

    Can’t you do wiring without the blender or push pull pot I don’t want to add either one of those I want to keep my volume/ tone/ tone pots and be able to wire to a import type selector I got a 59 Gibson humbucker and I’m not sure about the color code on the wiring but I would like to use my shifter to split the coils if it is possible

  5. ivan ravello

    any help is welcome to do the job //// because the guitar fetish humbucker and single coil look totaly different from the diagram of your website /// any way i’m gonna give a try ////

  6. ivan ravello

    i bought two single coil neodin an one humbucker from guitar fetish and i followed a diagram from Seymour Duncan , 1 humbucker 2 single coil , i volume , 2 tones ,5 way switch ////according to the diagram i have to use 3 pots 250 ,one cap 0.22 i have fallowed the directions but the result was a mess . now i gonna give a try to the HSS wiring tips #2 coil split with 5 way blade swicth and see what happen , grettings

  7. Tyler – great article. Really appreciate it.

    Was wondering how I would use wiring tip 2 with a 4 conductor plus bare wire setup? Any help would be much appreciated. Thanks.

  8. Benjamin Brite

    I’m curious where the green wire would go in diagram 1 if you were using a 4 wire humbucker with a bare ground? That diagram looks the simplest and most efficient to me but frankly I’m not smart enough to figure that out.

    1. It really depends on your humbucker wiring. Manufacturers have different wiring/color guides. This site is handy to help to figure that out. In our diagram, we’re showcasing a 3-Conductor Lead. If it were a 4-Conductor Lead, we would run both Red and Green to the push-pull pot, as that’s our center tap. 3-Conductor Lead ties Red & Green together at the humbucker, leaving you only one wire to solder if you want to split the humbucker.

  9. Thanks for this, very helpful. Im doing an HSS Strat but I want to be able to coil tap/split with a CTS 500k push/pull (versus positions 2 and 4 on the blade switch), and also have a blender. Is there a write-up I can reference for this, or what would I need to change about the “coil-split with blender” configuration above?

  10. Eric Bilodeau

    How to boost electronics charvel usa hss san dimas witn only one pots volume 5way switch blade new product guitar bought this year 2021 , with a capacitor and/or resistance ??

  11. Richard Clayton

    Great to here from you folks again, good stuff on the HSS strat wiring! And, good to know you teach Jazz guitar – I will be looking into that soon.
    Rich
