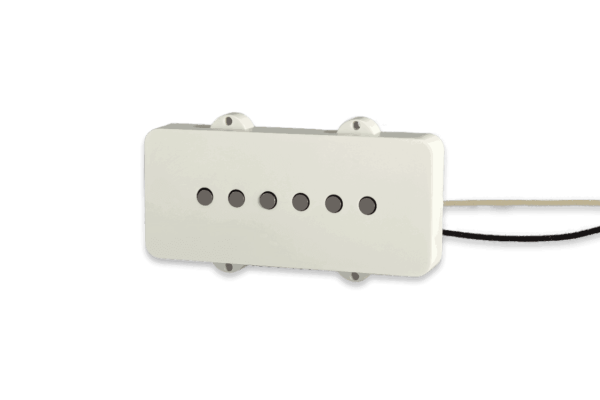

Hum-Cancelling Jazzmaster

(20 customer reviews)

$159.00$318.00

Are you seeking for the purest Jazzmaster tone – but can’t stand 60-Cycle hum? Discover why our Hum-Cancelling Jazzmaster pickups are the perfect pickups for you. Hum Cancelling Jazzmasters feature a unique 2-coil design located on either side of AlNiCo V magnets for a smooth, fat tone and the ultimate hum-free performance.

PRODUCT OPTIONS:
Clear

Due to the nature of Raw Nickel, Raw Nickel may contain slight cosemetic defects or abrasions.

We recommend using 2-Conductor With Shield Lead when purchasing a single pickup. 2-Conductor lead allows you to reverse the phase should you have phase issues. Learn More



Pure Jazzmaster Tone, Zero Jazzmaster Hum.

Want to learn more about our Hum-Cancelling Jazzmaster? Here's all the information you'll need:

Hum-Cancelling Jazzmaster FEATURES:

  • Original Lindy Fralin design!
  • Clean and clear, lots of Fender sparkle and twang
  • USA-made Alnico 5 Magnets for optimal tonal balance and output
  • Compensated Bridge output for even volume across all pickups
  • Unique 2-Coil design for noiseless operation in all positions
  • Hand-wound with our “Sectioning” technique for unique, dynamic tone
  • USA-Made Injection Molded Bobbins for unrivaled quality control
  • 10-Year Warranty on manufacturing defects

Sound

Improve the tone of your Jazzmaster today with our Hum-Cancelling Jazzmaster pickups. Whether you are a professional recording artist or a local hero, you understand the importance of getting rid of that pesky hum. Hum Cancelling pickups from other manufacturers always fall short of that real Jazzmaster tone, but at Fralin Pickups, we have the perfect solution. Lindy’s unique hum-canceling design provides you with the purest single-coil tone you can get out of a hum-free pickup.

Our Hum Cancelling Jazzmasters features a clear, round bottom end, with smooth and sparkly highs. Expect a balanced and clear midrange with an excellent string definition. You’ll love the familiar Fender pick attack as single notes sound clear and round, and chords will sound warm and defined.

Do you play clean? If so, you’ll find this set’s tone incredibly beautiful as the USA-Made Alnico 5 Magnets supply plenty of Fender sparkle. Playing with distortion will yield creamy, silky tones with a smooth, late breakup. We can overwind this model by 5% to give you more output and a darker and beefier tone – ask for it in the “Notes” field.

Our manufacturing process allows us to achieve unparalleled quality control. Our Hum-Cancelling Jazzmaster Pickups consist of a precision injection mold and USA-Made wire. We use smooth-sounding USA-Made magnets to make this model clear and balanced. Each bobbin is carefully inspected and cleaned before winding.

We wind each pickup by hand, one at a time, using our proprietary “Sectioning” technique. This gives the pickup a sweet, clear tone. Finally, we wax-pot the pickup to preserve the pickup and prevent microphonics.

For a Hum-Cancelling P90 version, we offer this pickup as a Hum-Cancelling Steel Pole Jazzmaster. Check it out.


Tonal Graph for Hum-Cancelling Jazzmaster:

The tone graph below for our Hum-Cancelling Jazzmaster features Lows, Midrange, Highs, and general Output.

HIGHS
MIDS
LOWS
OUTPUT

Video

Tech Specs

See below for the estimated DCR and Polarity Information for our Hum-Cancelling Jazzmaster.

This pickup is hum cancelling and features reversible polarity if purchased with 2-Conductor With Shield Lead. You might need to rout out a bit of wood to make these pickups fit. Some customers were required to rout about 1/16" - 1/8" from their pickup cavities. On American Vintage Reissue Guitars (AVRI), you'll need to lift the Copper Plate, rout some of the wood (1/8" - 1/4"), and replace the copper plate.

SPECIFICATION VALUE
Neck Ohm Reading:8.8K*
Bridge Ohm Reading:10K*
Neck Polarity:Hum Cancelling. Reversible with 2-Conductor With Shield Lead
Bridge Polarity:Hum Cancelling. Reversible with 2-Conductor With Shield Lead
Magnets:USA-Made Alnico 5
Coil:USA-Made 42-Gauge Single Poly Nylon
Recommended Pot Value:500K**
String Spacing:52mm

* Due to the unique design of this pickup, Ohm readings are not useful when comparing to different models | **Experiment with different pot values for a different tone

FAQs

  • What’s the tonal difference between this and your Standard JazzmasterNo Hum, of course! Other than that, not much. It’s very clean, clear, and articulate. The midrange might be a little bigger, and the highs might be slightly softer in the Hum-Cancelling version.
  • How do you orient the pickup? The D magnet will be the tallest magnet – so the leads come out of the “treble” side.
  • What’s the String Spacing? 52mm.
  • How far away from the strings does the pickup need to be? Push your Low E String down at the highest fret. Measure from the top of the pole piece to the bottom of the string. The ideal starting location should be 1/8? on the bass string, and 1/16? on the treble string, when the High E string is pushed down at highest fret.
  • Wiring Diagrams? We don’t offer wiring diagrams for the Jazzmaster, but you can find them all over the place on the internet. White is Hot, Black and Shield is ground.

Sizing

Jazzmaster Dimensions

Hum-Cancelling Jazzmaster Questions And Answers:

Have a question about our Hum-Cancelling Jazzmaster? Leave it here! We will answer your question within 24 hours.

Be the first to ask a question about Hum-Cancelling Jazzmaster


CUSTOMER REVIEWS

20 reviews for Hum-Cancelling Jazzmaster

  1. James Patrick
    Verified Buyer

    Awesome Pickups! I DIG THEM Lindy!

  2. Jeremy Hernandez
    Verified Buyer

    Amazing Noiseless Pickups

    I seriously am so happy with my purchase!! I was debating between a few different reputable companies for JM noiseless pickups for a while for my JM. The reviews on Fralin were all top notch and now I know why. These are dead silent and sound ridiculous. The highs and lows are perfect. So for me I have a 2021 Dark Knight JM Pro II that I put these in. My guitar tech kind of re wired my guitar specifically in a way that is amazing with these pick ups that I won’t get into but I will say they are completely hum free. I will also note that prior to ordering them I called Fralin and spoke to someone there and they were so helpful and friendly. They recommended a 300k volume pot for them which I got and that is amazing also. Overall Fralin for the win!!

  3. Ryan Wilson
    Verified Buyer

    Rippers! These pups are destroying the noisy stock winders!!! Absolutely love every Fralin pickup I’ve heard and used!

  4. Thomas McCuen
    Verified Buyer

    Jazzmaster American Standard
    Pickups make this thing sound like an angel coming out of my helix. No hum at all, even with drives stacked! Very impressed and can’t wait to put Fralins in my other guitars.

  5. Matthew J Wilder
    Verified Buyer

    I’ll be honest, a little bright for me. To be fair I’m playing with stainless steel frets and a ziricote board, so, brighter than rosewood and nickel. As far as clear and articulate, absolutely. I was hoping for a bit more bass, but I’m hoping to compensate with my amp. Hope this helps.

    • Tyler Delsack
      (store manager)

      Hey Matthew,

      Would you like to exchange it for a heavier wind? We can add a few extra turns on the pickup and it will thicken up the midrange, and decrease the highs. Email us at [email protected] if you’d like to process this exchange!

  6. Errik Wong
    Verified Buyer

    Very, very nice set of pickups

    I’ll be honest, I’m new to the whole Jazzmaster thing, but I know what a traditional JM sounds like. With a custom build that I put together (maple neck with Pau Ferro fb and SS frets + semi-hollow alder body), I knew that I wanted to avoid the rather extreme hum that traditional JM pickups tend to exhibit. When I installed this set of Fralin pickups, I did notice that the overall size of the coils was much smaller, but with the same overall thickness as a “normal” JM pickup. I use a pair of 500K audio taper pots in volume and tone positions. Plugging in, the guitar sounds warm but articulate in the neck position, chimey and twangy with both pickups combined, and bright but with a good degree of growl in the bridge pickup. I used this guitar for rehearsal and I must say that articulation is retained whether using a very low edge-of-breakup tone or with crunch tones and higher gain stuff when using a booster for solos. The neck is plump with enough warmth to evoke that traditional jazzbox tone, the combined tone is like a fat telecaster, but with more chime than a tele could ever muster; and the bridge is fast becoming one of my favourites for driven tones and solos. Thank you Lindy for crafting such a wonderful product; this is the fifth guitar that is equipped with your products, I’m definitely a huge Lindy Fralin fan and supporter!

  7. Anthony Dallago
    Verified Buyer

    No title added
    Customer added no additional comments

  8. Thomas Russo
    Verified Buyer

    They were an outstanding improvement over the Humming Fender pickups.

  9. John Pegg
    Verified Buyer

    All the twang and jangle you could ever dream of!
    I swapped out my J.Mascis Squier Jazzmaster pickups with the Fralins. Less growl than the more P90 stock pups, but that’s what I wanted. More true Jazzmaster tone and the Fralins deliver. They are clean, punchy and best of all, hum-free. Very happy I went with these. Highly recommended.

  10. Bruce LaVerdiere
    Verified Buyer

    AMAZING!
    It took me a while to pull the trigger, I was just unsure I was going to get the tone I was after. WAS I WRONG! Just order them! WHisper quiet and totally boutique sound and quality. I don’t want to put my Jazzmaster down! Thanks Lindy Fralin!!!!
