5-String Jazz Bass

  • Single Coil
  • Thick & Versatile
  • Traditional Appearance
  • Vintage Output
(36 genuine reviews)


The Lindy Fralin 5-String Jazz Bass replacement is perfect for bass players looking to get more definition, clarity, and thunder out of their 5-String Jazz Bass.



Select Options Above To Display Add-Ons

Raised Centers

Choose this option if you want raised center pole piece magnets on your pickups. This helps with string balance on fingerboards with a radius of less than 9.5 inches. Do not choose this option if you have a flat fingerboard.

Neck-Sized Bridge

In some cases, Fender Mexican Jazz Bass will have an equal-sized Neck & Bridge pickup. We can make this for you. Measure your pickups, and if they are the same, check this box!


Due to the nature of Raw Nickel, Raw Nickel may contain slight cosemetic defects or abrasions.


We recommend using 2-Conductor With Shield Lead when purchasing a single pickup. 2-Conductor lead allows you to reverse the phase should you have phase issues. Learn About Lead Choice

Lead Time

A Lead Time of 3 Weeks is just an estimate. Lead Times are subject to change depending on the current shop capacity and size of the order. We will always try to complete your order quicker than the stated lead time.

Clarity meets Bass.

Want to learn more about our 5-String Jazz Bass? Here's all the information you'll need:

5-String Jazz Bass FEATURES:

Our 5-String Jazz Bass Pickups feature a huge-sounding bottom-end and clarity. We wind these Lindy Fralin Jazz Bass Replacements to 60’s specifications, using top-of-the-line materials to give you a clear, open tone: all across the board. Our manufacturing process allows us to achieve unparalleled quality control.

These 5-String Jazz Bass Pickups consist of local fiberboard and USA-Made Magnets. We wind each pickup by hand, one at a time. Each pickup is wound using our proprietary “Sectioning” technique. This gives the pickup a sweet, clear tone. Finally, we wax-pot the pickup to preserve the pickup and prevent microphonics.


  • 60’s Fender specifications, built for 5-String Jazz Basses
  • Clean and clear, lots of Fender sparkle and clarity
  • USA-made Alnico 5 Magnets for optimal tonal balance and output
  • Compensated Bridge for even volume across all pickups
  • Two magnet staggers available for different fingerboard radiuses
  • Hand-wound with our “Sectioning” technique for unique, dynamic tone
  • Hand-built fiberboard Bobbins for unrivaled quality control
  • 10-Year Warranty on manufacturing defects



Fralin 5-String Jazz Bass Pickups offer a wide tonal range. They are wound to 60’s Specifications, which give them more output and balance. Expect a sweeter tone, with a warm midrange. Also, you’ll hear top-end sparkle and clarity. Nuances will come to life as you notice increased presence. They will break up late and stay clean longer.


Our Pickups are dynamic – they’ll get punchy if you dig into them. They’ll have top-end spank when you slap them. You’ll also notice they’ll stay soft and dynamic when you play light. Finally, these Jazz Bass Pickups are for those who are not happy with the tone from stock pickups. These tend to be sweeter-sounding, not aggressive. You’ll wonder why you didn’t make the switch earlier.
We offer (3) winding options to help you determine the perfect tone:

  • For an era-authentic 60’s tone, use our “Stock Wind”, or, choose “N/A” under output preference
  • For a thicker midrange and less highs, choose +5%. This will reduce the highs by 5%, and increase the lows and mids by 5%.
  • If you’re looking for a little cleaner tone, use our -5% wind. This will increase the highs by 5%, and decrease the mids by 5%.


Tonal Graph for 5-String Jazz Bass:

The tone graph below for our 5-String Jazz Bass features Lows, Midrange, Highs, and general Output.


Tech Specs



See below for the estimated DCR and Polarity Information for our 5-String Jazz Bass.

Neck Ohm Reading:9.6K
Bridge Ohm Reading:10.1K
Neck String Spacing:17mm
Bridge String Spacing:17.5mm

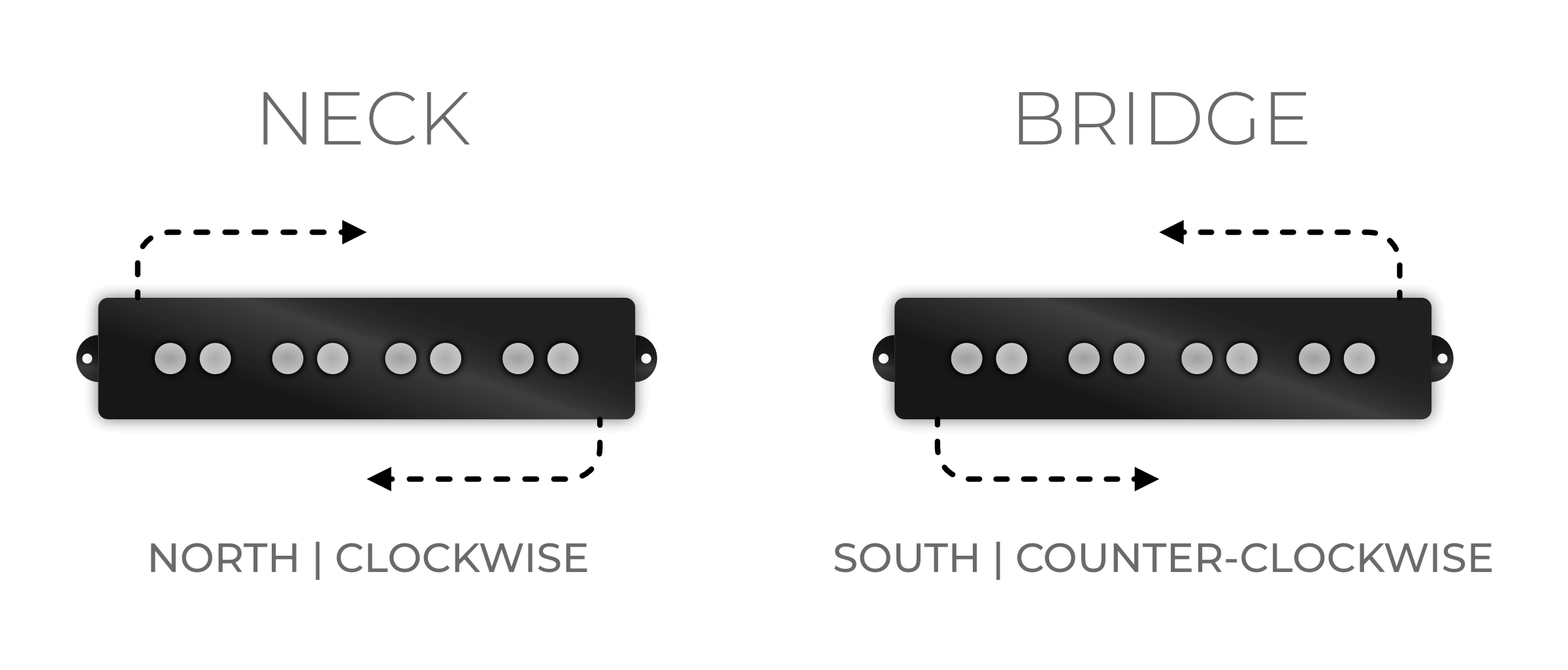

Neck Polarity:Clockwise Coil Direction, North To Strings
Bridge Polarity:Counter-Clockwise Coil Direction, South To Strings
Magnets:USA-Made Alnico 5
Wire:USA-Made 42-Gauge Single Poly Nylon
Recommended Pot Value:250K
Recommended Cap Value**:0.02mfd

**We recommend a 0.02mfd Cap Value on most guitar and bass pickups. The exception is a Magic Cap, which Lindy prefers on the Bridge Pickup of Fender® guitars only. Learn More about Caps Here.


5 String Jazz Bass Dimensions


5-String Jazz Bass Questions And Answers:


Have a question about our 5-String Jazz Bass? Ask it here. Your Question will be publically visible. If you want to ask a Private Question, please contact us through our Contact Us Form.

If you have multiple questions, please call us at (804) 358-2699.

    Hi sir! I really love your overwind pickups ! I Woul to take a single coil set + 5% for my Sivcak 5 strings but the body is fitted to Nordstrand sizing (shorter digs). If i take Fralin pickups puttin them into Nordies cover? Not possible? Or could you do specific covers for me? Best regards
  1. Q Hi sir! I really love your overwind pickups ! I Woul to take a single coil set + 5% for my Sivcak...... Read more
    There are no answers for this question yet.
  2. can these be used with active preamp?
  3. Q can these be used with active preamp?

    Hey David, yes - the 5-String Jazz Bass will work seamlessly with a Preamp.

  4. Hello, I'm considering buying a set of 5 strings Jazz Bass pickups. The one available from one of your dealers in EU right now has a set with stock neck pickup and a +5% overwound bridge pickup. I have two questions. 1. Is it ok to mix stock/overwound on the same set? 2. Is the overwound bridge going to help for a clear yet powerful low B with respect to the stock one? Thanks a lot!
  5. Q Hello, I'm considering buying a set of 5 strings Jazz Bass pickups. The one available from one of...... Read more

    Hey Luca, thanks for your question. It is definitely fine to mix the Stock and +5% Bridge! Both pickups have the same amount of clear low end, the +5% has a bit more power in the midrange and a touch darker tone. It's subtle, but basically, the +5% is a bit "thicker" sounding than the stock bridge. I think you'll like the tone.

  6. Are your Jazz pickups reverse wound?
  7. Q Are your Jazz pickups reverse wound?

    Hey Gregg, yes they are, as well as reverse polarity. They will cancel hum in the middle position.

  8. Looking for thé J5 Set Hum cancelling but cannot find them on your website. How can I order them ?
  9. Q Looking for thé J5 Set Hum cancelling but cannot find them on your website. How can I order them ?
    A Hey Dario, you may order them by emailing us at [email protected] They are currently not on the website.


Asking a question here will be public to all users of this site


Did you already ask a question on our Contact Us Form? Don't ask it again here. Please be patient while we get back to you.

Send me a notification for each new answer.


Go the extra mile and combine our 5-String Jazz Bass with a Jazz Bass Control Plate!:

Get It Prewired - Lindy Fralin Pickups


36 Genuine Reviews for 5-String Jazz Bass

  1. Stephane DIAMANTAKIOU
    Verified Buyer

    Jazz Bass 5 set: There is not my first experience with Fralin pickups and I can say they are by far my favorite! Thank you for the great products!

  2. Brent Millburn
    Verified Buyer

    Clarity Plus!
    The clarity that comes through with these pickups is a vast improvement over the stock Vintage Modified. I now really enjoy playing my Jazz 5 bass now that I’ve dropped in this set of Lindy Fralins. No hype, just fact.


  3. Robert Stewart
    Verified Buyer

    Upgrade to my MIM Jazz
    The new pickups sound great! Reasonably easy to install and setup. I also really appreciate all the available videos!!

  4. Mark St Martin

    So i picked up this Blond Squire 5 string like Chucks a while back.
    Tried multiple brand strings but just couldn’t get over the crazy harmonics all over the scales
    Truth is, it spent more time on the guitar stand …

    Eager to play it, i searched to see what was available, what could help this great lil’ bass sound better.
    Read a few forums that spoke highly of these aftermarket pickups, could they be all that?
    Ordered a set, wired them in as I had the others, with a master volume, blend pot & tone .
    Simply Amazing … the transformation was incredible, the tones smooth through out the neck.
    Now for the head stock … wish i could post a picture : )

    Bottom line, when your axe sounds great, it inspires the ears and mind, and less time on the stand!
    There is no coincidence for all the 5 star feedback!

    Thanks Lindy

  5. Petra Slezakova
    Verified Buyer

    Good quality
    Nicely packed and easy to install. Playing on them in the Czech Republic ?

  6. Corbin Cox
    Verified Buyer

    The best pickups I’ve ever had! I have these on my fretless J bass with tape wounds and it has the clarity to really bring out all of the nuances of my bass. A++ stuff

  7. Corbin Cox
    Verified Buyer

    The best pickups I’ve ever had
    I have these on my fretless J bass with tapewounds and it has the clarity to really bring out all of the nuances of my bass. A++ stuff

  8. Skip Ward

    Can you tell me more about the pick guard dummy coil thing??? How does that work?

    • Tyler Delsack – Fralin Pickups
      (store manager)

      I believe Ilitch Electronics have made these in the past. It’s a ‘Dummy Coil’ that helps reduce hum. Check them out!


  9. Galo

    Realmente Excelentes…. que más podría agregar…Saludos…

  10. Doug Beale
    Verified Buyer


    Put these in a 5 string squire “precision” that looks like a jazz pickupwise. Had to rout out the holes to fit them then steal the foam from the old less than stellar pickups. Also put in a 470k resistor on each of the 500k mini volume pots to get them near 250K sounds great. Lots of power and amazing tone. I think it’s better than my ‘76 precision that has 1964 fender pre pickups. Love the decision to go with these pickups. Best $200 sound investment available in my mind
