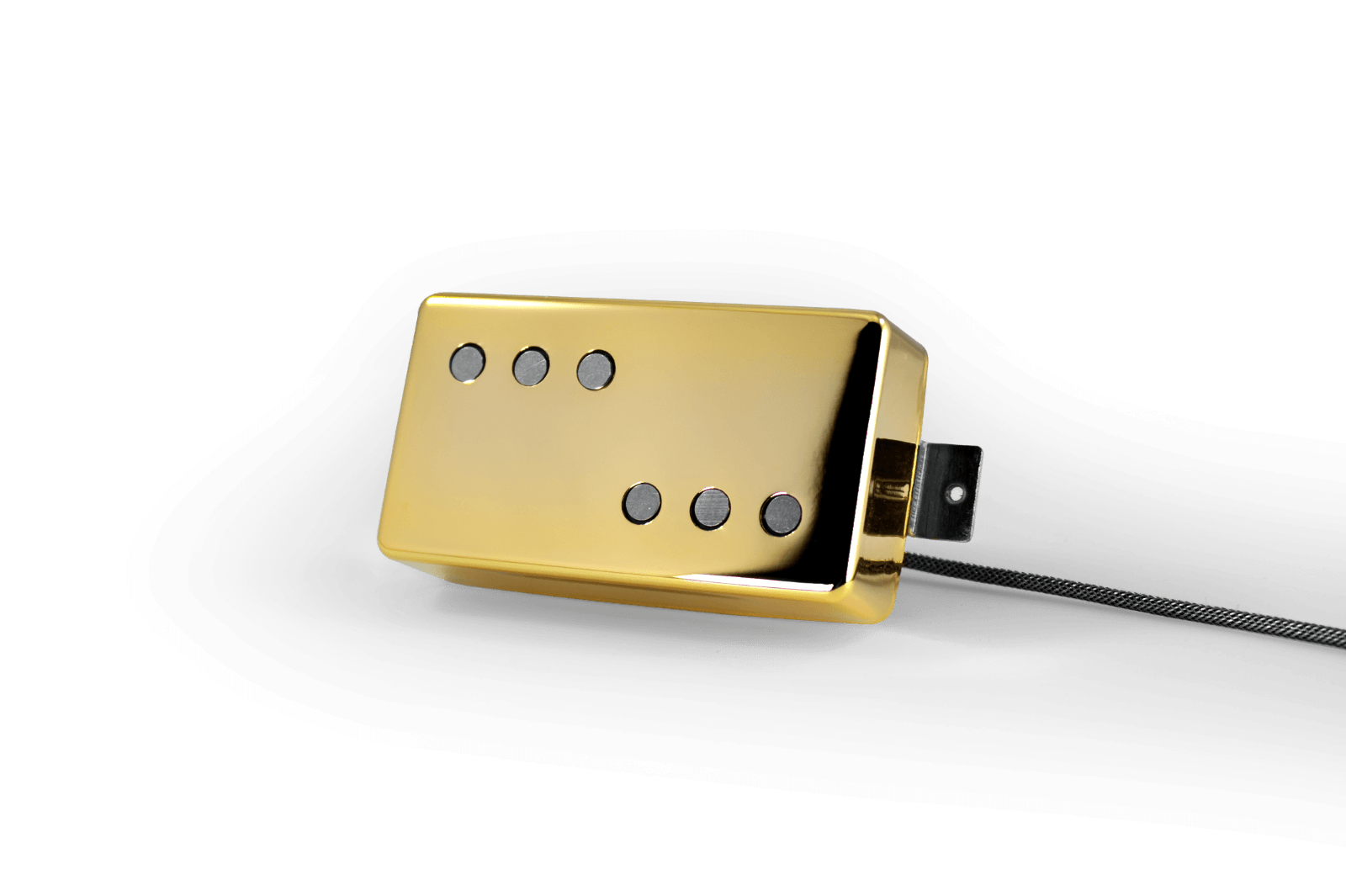

Fralin Twangmaster Raw Nickel

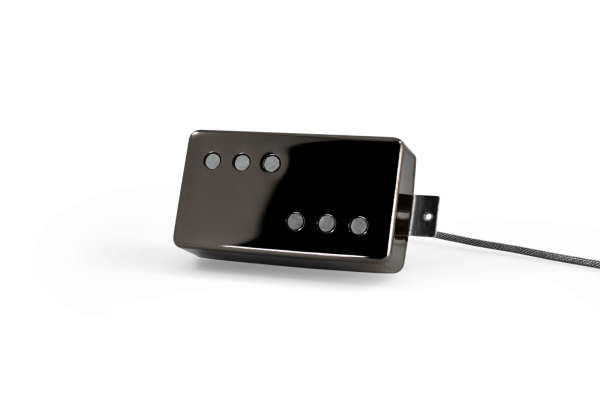

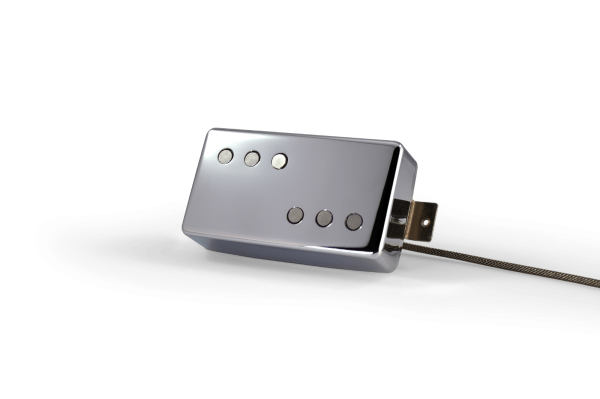

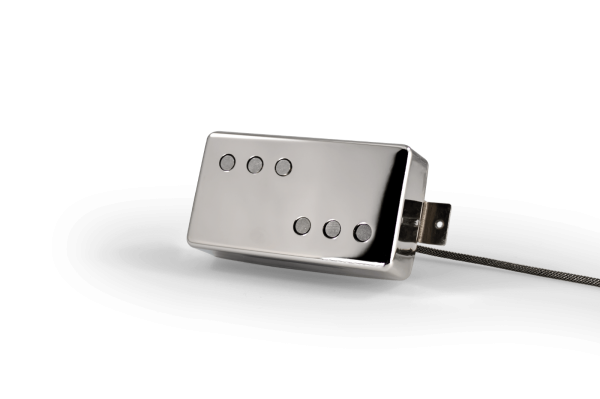

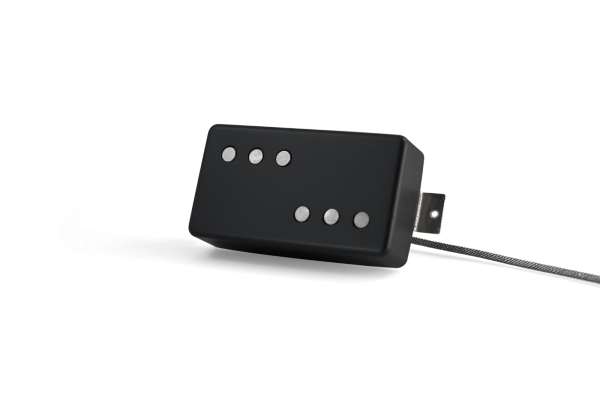

Fralin Twangmaster In Polished Nickel CoverFralin Twangmaster In Black CoverHumbucker Dimensions

Twangmaster

5 out of 5 based on 1 customer rating
(1 customer review)

$140.00$290.00

A humbucker in size and shape, but the sound is open, airy and pure single coil.

Clear

Pickup Cover (Required) *

Please choose how you want your pickups to look in your guitar.

PURE SINGLE-COIL TONE IN A HUMBUCKER COVER.

The Lindy Fralin Twangmaster® is perfect for anyone who wants a Single Coil tone in their humbucker-routed guitar, but hates hum. We use a Left-Right coil design to make sure that there’s no hum at all. Our Twangmaster® uses AlNiCo V magnets and sounds clean, bright, and smooth. This pickup sounds cleaner than our Big Single, and cleaner than our Fralin P-92. The Lindy Fralin Twangmaster® sounds like a single-coil pickup, with a little humbucker edge.

SOUND:

Clean and bright, articulate and expressive. The Fralin Twangmaster® is slow to break up, but you’ll find that it’s loud and dynamic. For those who love the sound of Single Coil pickups, now you can fit them into the humbucker routed guitar. Built with AlNicCo V magnets, we use 42-gauge or 43 gauge wire depending on the strength you need. When playing clean, you’ll find that this pickup has a clean, snappy tone. With distortion, you’ll find that the grind is smoother than our Standard Humbucker.

FEATURES:

  • Single Coil sound in a Humbucker cover
  • Clean, articulate, and expressive.
  • Late, smooth breakup
  • Bright wound strings, pure-sounding plain strings
  • Made by hand, one at a time.

TECHNICAL INFORMATION:

Wound with 42 or 43-gauge wire, and built with AlNiCo V magnets. Options include a Nickel, Raw Nickel, Gold or Black cover. We wind these pickups by number of turns, rather than Ohm output. The more turns we put on a pickup, the stronger and dirtier the pickup will get. The best selling set is an 8,400 in the neck and a 9,400 bridge.

CHOOSING THE LEAD:

  1. Gibson® Braided Shielded: Most popular. Use this if you have no special requirements (Coil tapping, Phase Reverse or Series / Parallel).
  2. 2-Conductor With Shield: Use this if you have Phase-Matching needs.

CHOOSING COLOR AND COVER OPTIONS:

The Twangmaster requires a cover: please choose below.

Cover:

  • Nickel
  • Raw Nickel
  • Satin Black ($2 Ea)

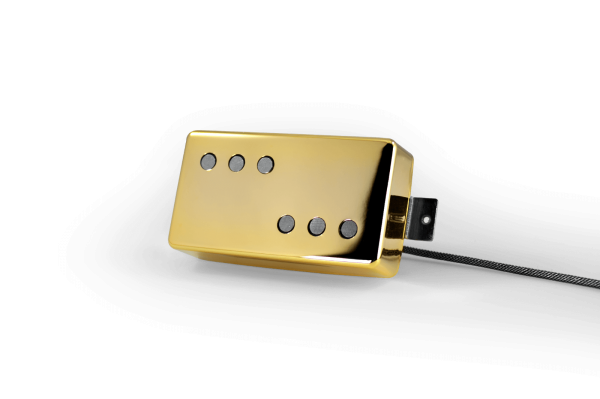

  • Gold ($5 Ea)

CUSTOM REQUIREMENTS:

At Fralin Pickups, we are a total and complete custom shop. Need something specific? Upon checkout, use the “Notes” field to write anything you want!

Wiring Diagrams

Location

Complete Set, Single

Neck Output

7,800 Turns, 8,000 Turns, 8,200 Turns, 8,400 Turns, N/A

Bridge Output

8,600 Turns, 8,800 Turns, 9,000 Turns, 9,200 Turns, 9,400 turns, N/A

Type of Lead

2 Conductor (for Phase Matching), Gibson® Braided Shield


Reviews

1 review for Twangmaster

  1. 5 out of 5

    :

    I bought a Twangmaster for the neck pickup of my ’84 Tokai flying V. I was going for a big ‘strat’ like neck tone and boy was this the right choice! I actually chose the 9,400 turns more common of the bridge position, and it sounds great. It has a beautiful big clean tone and with some grit it’s perfect for the ‘texas’ boogie. Its also dead silent with zero hum, highly recommended! I need another!
