Tone Caps

    $3$12

    If you’re already under the hood of your instrument, grab a few tone caps to play with. These are great, inexpensive ways to shape your tone to your liking!











    PRODUCT OPTIONS:

    Notice

    Due to the nature of Raw Nickel, Raw Nickel may contain slight cosemetic defects or abrasions.

    Recommendation

    We recommend using 2-Conductor With Shield Lead when purchasing a single pickup. 2-Conductor lead allows you to reverse the phase should you have phase issues. Learn About Lead Choice

    Lead Time

    A Lead Time of 2-3 Days is just an estimate. Lead Times are subject to change depending on the current shop capacity and size of the order. We will always try to complete your order quicker than the stated lead time.


    Tone Caps INFO:

    Want to learn more about our Tone Caps? Here's all the information you'll need:

    Tone Caps FEATURES:

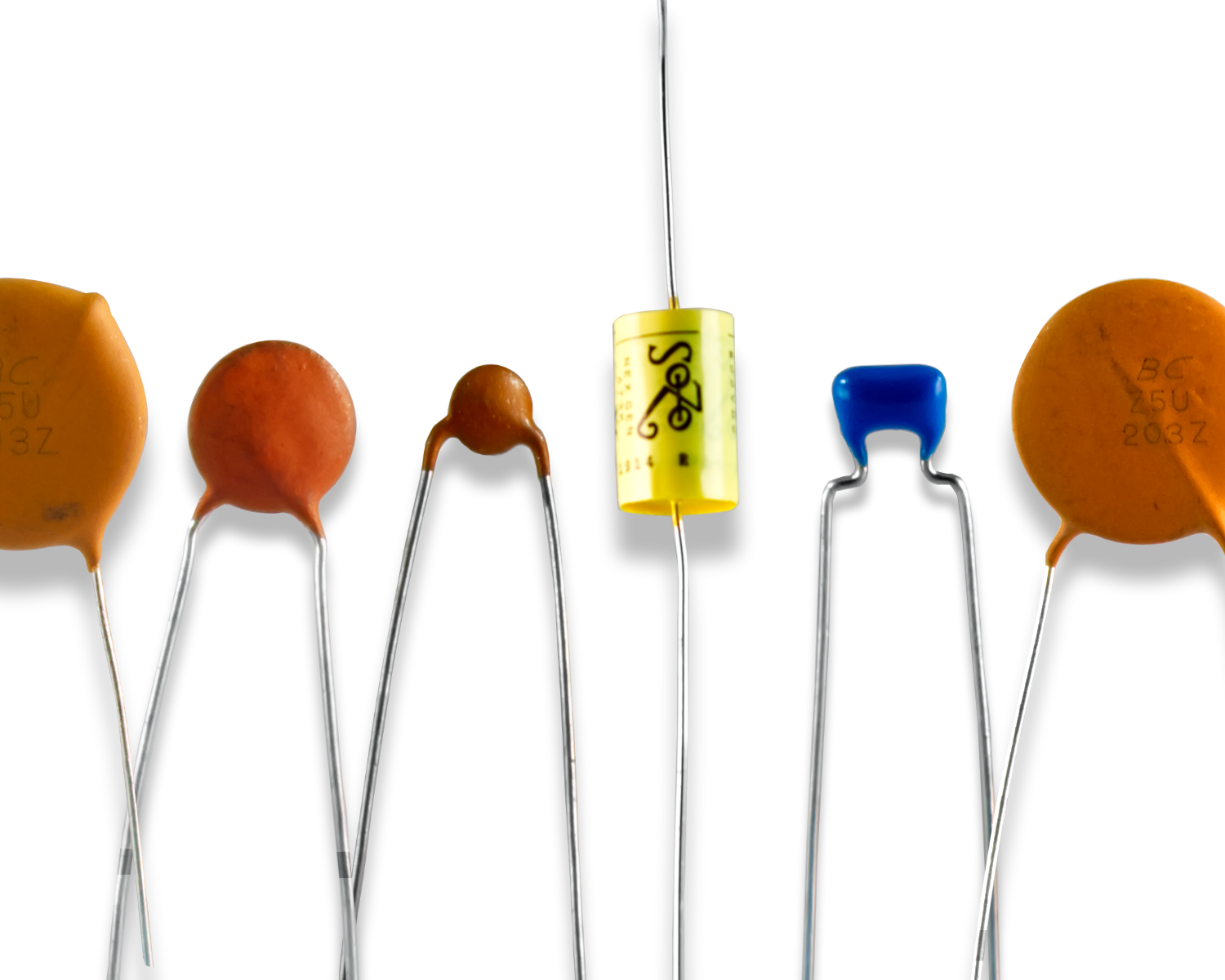

    Shape your pickup’s tone the easy way with our high-quality tone caps! From our Paper and Oil caps to our simple Ceramic Disc caps, you can achieve a wide array of tonal versatility, on a budget.

    Check out our article here on how Tone Capacitors work, and which value to choose.

    Check out our modification here, where you can select two-tone caps with a push-pull pot.

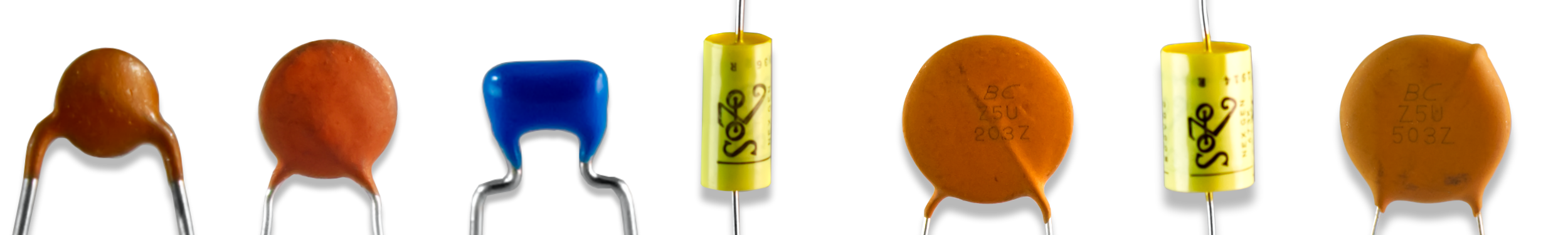

    Fralin Tone Cap Family











    Available Models

    • Fralin Magic Cap: Lindy’s favorite cap to boost the midrange of a shrill single-coil pickup. This value is extremely subtle and tends to work on bright pickups only.
    • .0022: Great for bridge pickups and bright sounding guitars, this cap will boost your midrange and tame a few of your high frequencies. It’s a little stronger tone than our Magic Cap.
    • .02mfd: This popular cap is very usable throughout the entire pickup line, and works well on Humbuckers and Single Coil pickups. Gibson and Fender use this cap as a standard for more modern guitars.
    • .05 / .047mfd: This popular cap works well with Humbuckers and Single Coils and goes pretty deep into the upper midrange. Use this cap if you want a warmer jazz tone from your pickups. You’ll see this cap used on vintage Fender Telecasters and Strats frequently.
    • 1mfd: This cap will provide the deepest roll-off available. You will find this value in vintage instruments. The roll-off of high frequencies will start quicker and go deeper into the midrange than the other capacitors offered.









    Tone Caps Questions And Answers:

    Notice:

    Have a question about our Tone Caps? Ask it here. Your Question will be publically visible. If you want to ask a Private Question, please contact us through our Contact Us Form.

    If you have multiple questions, please call us at (804) 358-2699.

      Hey, I've got an Ash body Strat with a Maple neck with the Steel Pole 42's in the Neck and Middle and a High Output Strat w/baseplate in the Bridge. It Currently has the Fender .1 MFD tone cap which sounded great with the original late 50's pups, but now I always leave the tone on 10 (it also has a blender). The Steel 42's sound incredible and took away the shrill high end. Honestly the pups sound basically perfect as they are, but it would be ni... Read more
    1. Q Hey, I've got an Ash body Strat with a Maple neck with the Steel Pole 42's in the Neck and Middle...... Read more
      A

      I'd recommend a 0.02 tone cap. If you need more overall brightness, I recommend changing from a 250K volume pot to a 300K volume pot.

    2. Hi… Is there a standard cap to use for the split series jazz bass p’ups? I’ve got the stock neck p’up and 5% overwind on the bridge p’up. Regards Phil S
    3. Q Hi… Is there a standard cap to use for the split series jazz bass p’ups? I’ve got the stock neck ...... Read more
      A

      Hey Phil, we always recommend either 0.02mfd or 0.047mfd - 0.02 is the standard, but if you need more roll-off, the 0.047 will provide that.

    4. Is it necessary to even use a cap.? I see they come in different voltages as well. What would i want to use for a p/j bass setup. Do I even need a cap?
    5. Q Is it necessary to even use a cap.? I see they come in different voltages as well. What would i w...... Read more
      A

      Hey Rich, if you want a tone control, you need a tone cap. If you don't use your tone, you can forego a tone cap. I would recommend using a 0.02 cap for a P/J setup - it's a good balance of tapering highs without going too deep into the midrange. Regarding Cap Voltages, you don't need to pay attention to this as guitar and bass pickups produce millivolts - unlike in a guitar amp, where cap voltage is very important.

      All in all, I'd reco... Read more

    6. Would these caps also do well with Bass pickups? I see a lost of how they affect guitar pickups, but ma curious of how they would affect bass pickups. Thanks!
    7. Q Would these caps also do well with Bass pickups? I see a lost of how they affect guitar pickups, ...... Read more
      A

      Hey Autumn, yes, these caps will work perfectly for bass. Typically, you want to go with a higher capacitance value, like 0.047 or 0.5.

    8. What caps do you recommend for pure pafs? I ordered all the install parts I need from Fralin except wire and caps. And i love my new Blues Special Teles with the preloaded plate. Install was great, sound is out of this world. Thanks to all at Fralin
    9. Q What caps do you recommend for pure pafs? I ordered all the install parts I need from Fralin exce...... Read more
      A

      Hey Gerald, we always recommend 0.022 caps for our Pure P.A.F's. They will provide you with enough roll-off. - Tyler

    Note:

    Asking a question here will be public to all users of this site

    Hey!

    Did you already ask a question on our Contact Us Form? Don't ask it again here. Please be patient while we get back to you.

    Send me a notification for each new answer.
