Two Tone Cap Mod

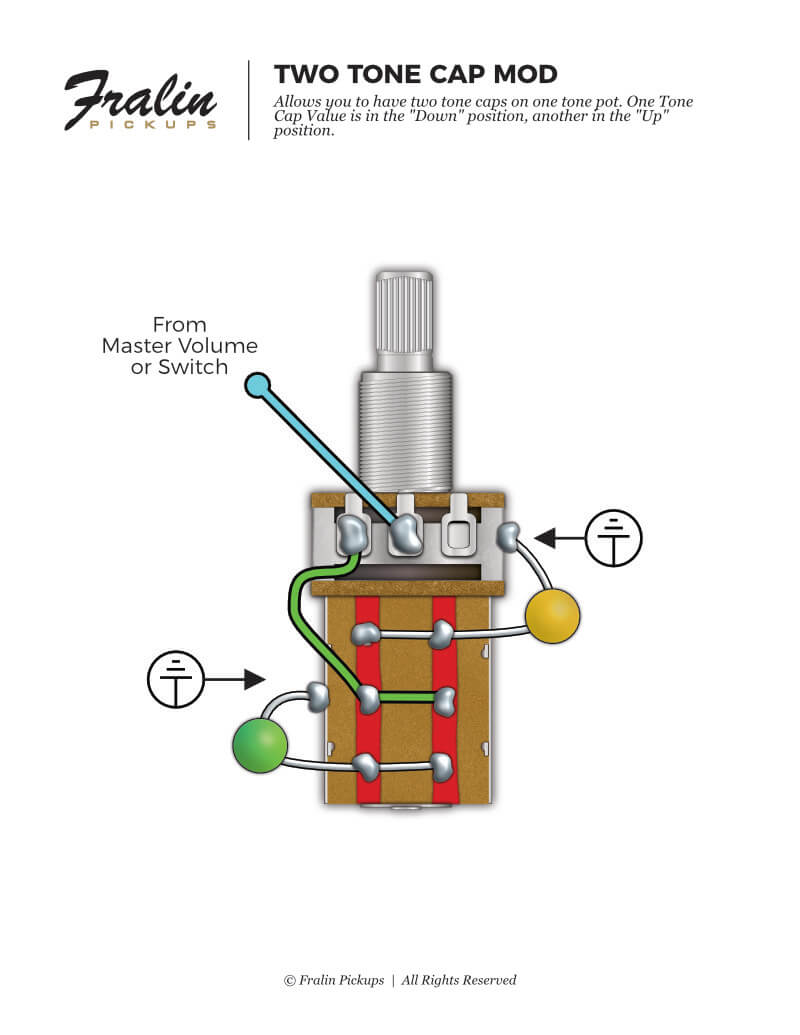

Our Two Tone Cap Mod is a Push-Pull Pot Mod that allows you to have two tone caps on one pot. You can have one Tone Cap in the "Down" position, and another in the "Up" position. This is useful for guitars with one tone pot, like a Telecaster. For an explaination of how the Two Tone Cap mod works, check out our article here.

Prewired Orders

If you ordered a Prewired Pickguard or Control Plate from us, the wiring you received may not match the diagram on this page.

A Note On Grounding:

Most of our diagrams don't depict ground wires. Make sure all metal is properly grounded to ensure correct operation.

Two Tone Cap Mod - Push Pull Pot Modification

Notes on this Two Tone Cap Mod:

More information regarding this wiring diagram:

Download:

Download this wiring diagram and save to your computer
