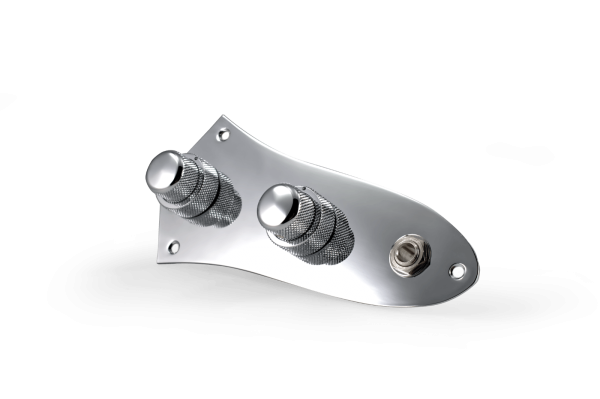

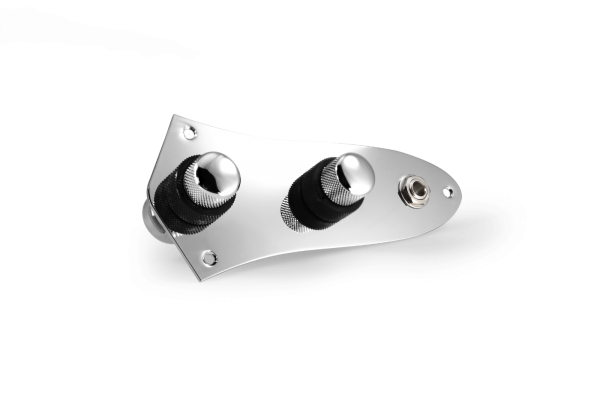

Prewired Concentric Jazz Bass Control Plate

    (6 genuine reviews)

    $115

    Our Lindy Fralin Prewired Jazz Bass Control Plate with Concentric Knobs provides the best materials and quality possible, at an affordable price. Featuring USA-Made materials and precision wiring, our Prewired Jazz Bass Control Plate is rock solid and incredibly easy to install! This model features Concentric Knobs for even more control.







    PRODUCT OPTIONS:

    Select Options Above To Display Add-Ons

    Neck Tone Cap *

    Choose what Tone Cap you would like installed on the Neck Pickup. 0.02mfd is the recommended value for most pickup setups. Choose a higher value for a darker tone.

    Choose what Tone Cap you would like installed on the Neck Pickup. 0.02mfd is the recommended value for most pickup setups. Choose a higher value for a darker tone.

    Output Jack *

    Let us know what Output Jack to install. The Pure Tone Output Jack contains dual tension grounds and dual positive tips for optimal signal and the lowest possible noise.

    Notice

    Due to the nature of Raw Nickel, Raw Nickel may contain slight cosemetic defects or abrasions.

    Recommendation

    We recommend using 2-Conductor With Shield Lead when purchasing a single pickup. 2-Conductor lead allows you to reverse the phase should you have phase issues. Learn About Lead Choice

    Lead Time

    A Lead Time of 4 Weeks is just an estimate. Lead Times are subject to change depending on the current shop capacity and size of the order. We will always try to complete your order quicker than the stated lead time.


    Dig In with Total Control.

    Want to learn more about our Prewired Concentric Jazz Bass Control Plate? Here's all the information you'll need:

    Prewired Concentric Jazz Bass Control Plate FEATURES:

    Based on our best-selling Prewired Jazz Bass Control Plate, we wanted to offer more options, including one with Concentric Pots! Introducing the brand-new Prewired Concentric Jazz Bass Control Plate by Fralin Pickups: USA-Made quality, CTS® Pots, the rock-solid Switchcraft Output Jack, all beautifully wired and ready to install in a few minutes.

    • USA-Made control plate and knobs, with a Chrome finish
    • CTS® Concentric 250K / 500K Audio Taper Pots for a smooth operation
    • Modified Jazz Bass wiring, with Concentric Pots for infinite tonal options
    • Wide assortment of Tone Caps available to fine-tune your tone
    • Incredibly simple installation involves soldering only 4 wires







    Cap Value

    With our Prewired Jazz Bass Control Plate, you can choose and customize your Tone Cap options easily. Lower values (0.0022mfd and 0.0047mfd) will give you minute tone control and allow micro-adjustments to your basses’ tone. Larger values (0.02mfd & 0.047mfd) will start affecting the tone earlier in the tone pot rotation, and cut deeper into your basses’ midrange, giving you a darker tone.

    If you’re unsure of what tone cap to choose, we recommend a 0.022mfd, which is a good middle ground.







    Installation

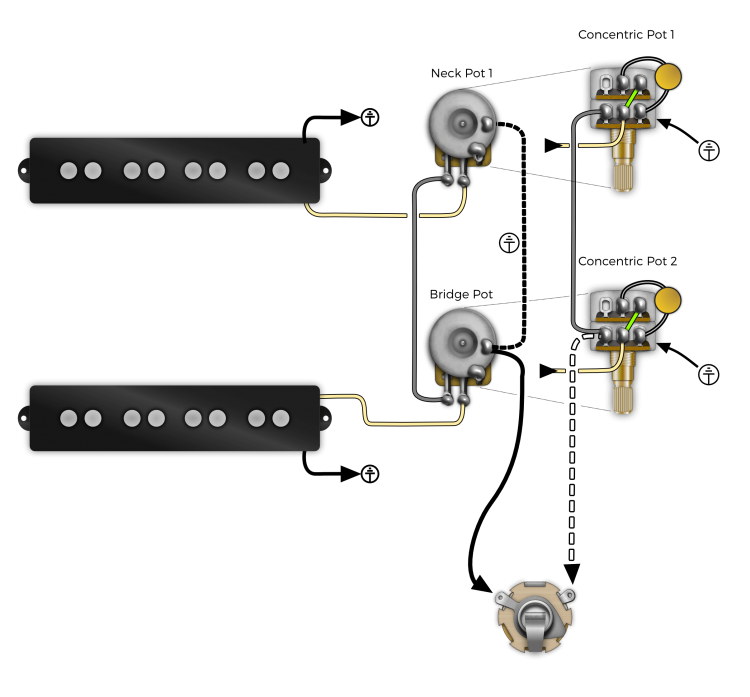

    Installation of our Prewired Concentric Jazz Bass Control Plate is very simple. Your pickup’s Black wires go to Ground and can be safely soldered to the casing of each pot. White Wires solder to the middle lug of their respective pots. That’s it! See below:

    The only wires that need soldering are the White and Black wires from the pickups. The rest is taken care of for you.

    Fralin Prewired Jazz Bass Control Plate Installation







    Sizing

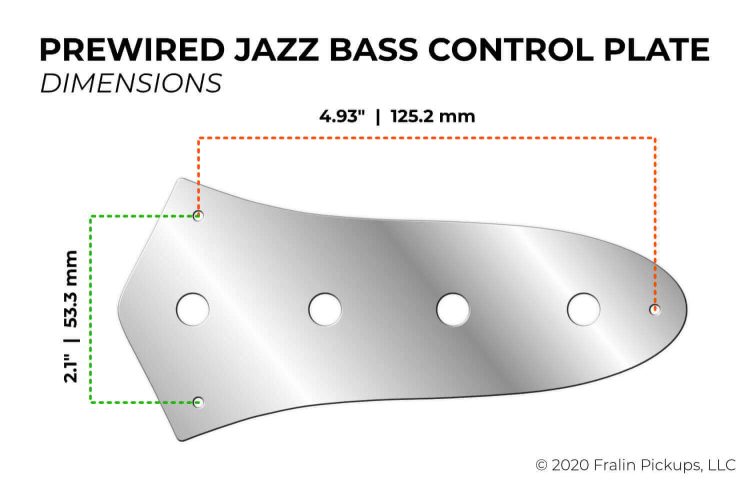

    Prewired Jazz Bass Control Plate Dimensions







    Prewired Concentric Jazz Bass Control Plate Questions And Answers:

    Notice:

    Have a question about our Prewired Concentric Jazz Bass Control Plate? Ask it here. Your Question will be publically visible. If you want to ask a Private Question, please contact us through our Contact Us Form.

    If you have multiple questions, please call us at (804) 358-2699.

      I have a Fender American professional bought new around 2011. I’ve never been real happy with the tone or the controls. Does your control plate + new pickups option completely fit this model? I’m assuming the preamp is unmodified. Looking for any info that might be helpful in deciding whether to try this mod. Thanks much!
    1. Q I have a Fender American professional bought new around 2011. I’ve never been real happy with the...... Read more
      A

      Hey Jack, yes - our prewired plate should fit perfectly as they are all pretty standardized, fit-wise. - Tyler

    2. Do you offer a version with a stereo output jack?
    3. Q Do you offer a version with a stereo output jack?
      A

      Hey Scott, as it turns out, we do not - but an aftermarket jack can be added easily. - Tyler

    4. Hi. I’m interested in your “PREWIRED CONCENTRIC JAZZ BASS CONTROL PLATE” for my left-handed ‘62 reissue Fender Jazz bass and wanted to confirm that you can apply left-hand pots to the assembly? Thank you
    5. Q Hi. I’m interested in your “PREWIRED CONCENTRIC JAZZ BASS CONTROL PLATE” for my left-handed ‘62 r...... Read more
      A

      Hey Flavio, as it turns out, we do not have any Left-Handed Taper pots available for this model. I apologize for the inconvenience.  - Tyler

    6. Good morning. Can these components be removed and installed on a Mustang control plate? Additionally, will these work with a PJ set? Thank you.
    7. Q Good morning. Can these components be removed and installed on a Mustang control plate? Additiona...... Read more
      A

      Hey Scott, yes! I believe you can remove the components and install them on another plate. This Control Plate will definitely work for a P/J set.

    8. Is this 3 hole prewired concentric control plate the same size as the 4 hole jazz control plate? Thanks.
    9. Q Is this 3 hole prewired concentric control plate the same size as the 4 hole jazz control plate? ...... Read more
      A

      Hey Albert, yes - both plates are the same size.

    Note:

    Asking a question here will be public to all users of this site

    Hey!

    Did you already ask a question on our Contact Us Form? Don't ask it again here. Please be patient while we get back to you.

    Send me a notification for each new answer.

    CUSTOMER REVIEWS

    6 Genuine Reviews for Prewired Concentric Jazz Bass Control Plate

    1. Ricardo
      Verified Buyer

      Quality is amazing and my bass sounds great! I bought it with the 0.022mfd tone caps for both pots, and together with the fralin jazz bass pickups. Installed it in my squire modified vintage ’77 jazz bass, it really transformed it into a great sounding instrument.

    2. Ted Mabbatt
      Verified Buyer

      Top quality components all masterfully wired. Super easy to install.

    3. Salvatore
      Verified Buyer

      Solid American-made construction. Paired with Fralin’s J-bass pickups, the controls gave me tone and volume control that far surpassed my expectations. Worthy of the original Fender sound every musician seeks.

    4. Hong
      Verified Buyer

      Bought a Fender American Pro ii Jazz bass and to be honest I’m not quite happy with it so I’ve been doing some mods lately.

      First, I bought a pair of Fralin 60s Jazz bass pups and swapped out the factory fitted V-Mods ii and the difference is night and day! a
      I much prefer the tone from Fralin 60s, punchy, articulate with the iconic jazz bass growl and it does not get muddy when I rolled it off a bit. I’ve always wanted to have a jazz bass with stacked knobs so I finally pulled the triggered and have it installed on my pro ii jazz bass.

      OH man I tell you what the tone I can get out of this combo (Fralin 60s + stacked knobs prewired kit) is unlimited and the installation is simple all you need is a soldering iron and I got it done in just under 10mins. If I was going to buy another J-Bass I would definitely fit it with another set of Fralin stacked knobs prewired kit!

      Build quality A+++
      Components used A+++
      Tone A+++

    5. Robert Hammill
      Verified Buyer

      You guys are awesome. I just installed my pickups and control plate into my Sire V7 fretless, and it sounds fantastic. So much more bottom end. So much fuller sounding. Looks sharp too! I’m an absolute beginner with bass mods and the flags ya’ll left on wires to show what to solder where, made it so much simpler. The e-mails you sent while waiting for the build to be complete were also helpful! I can’t thank you enough and would recommend Fralin to anyone and everyone.

    6. hbreder
      Verified Buyer

      Purchased the control plate to go with the Fralin split pickups previously installed on my jazz bass.
      Ordered the 0.022mfd oil caps on both controls. Easy to install. They actually put temporary wires with flags attached to show where to solder the pickup wires to the pots. The tone is a vast improvement over the stock controls and having a separate tone control for each pickup allows for greater range. My bass has never sounded better.
