Prewired Telecaster Control Plate

  • Customizable
  • USA-Made
  • Easy Installation
(135 genuine reviews)

$100$110

Customize and upgrade your Telecaster, instantly with the Lindy Fralin Telecaster Control Plate. With over 150 combinations available, you can select your options, and we’ll wire it up just how you like it. Installation involves soldering a few wires into place. As always, we only use the finest-quality USA-Made parts we can find.

PRODUCT OPTIONS:

Select Options Above To Display Add-Ons

Add-Ons

Pre-install our Volume Kit for a few extra bucks. Add Resistors to optimize your tone if you have a Tele with a Humbucker or P90 in the Neck or Bridge. Only select the Resistor where the brighter pickup will be. For instance, if you have a Humbucker Neck, add a 500K resistor to your Bridge.

Volume Pot Push-Pull Mods

You can add functionality to your tone by adding a Push-Pull Pot on your Volume Pot. Choose between our Bright Switch, Engage / Disengage Volume Kit Mod, or a regular Coil Split if you have a Humbucker.

Tone Pot Push Pull Mods

Need even more functionality? Choose between the Bright Switch, Two-Tone Cap Mod, and Series Parallel Push-Pull Mod..

Tone Cap

If the Two-Tone Cap Push-Pull Mod is chosen, select two tone cap values and use the “Notes” field to let us which cap you want in the “up” or “down” position.

Output Jack *

Let us know what Output Jack to install. The Pure Tone Output Jack contains dual tension grounds and dual positive tips for optimal signal and the lowest possible noise.

Esquire Wiring

Wiring for an Esquire? Check the box below for Eldred Wiring. We use a Film & Oil .0047 cap for a unique tone. Note: This mod is for Single Pickup Guitars only.

Left Handed

We can make your control plate in a Left-Handed configuration. Please note that Push Pull Pot mods are unavailable in a Left-Handed configuration.

Additional Information:

To speed up your Control Plate, we need to know which tone cap goes where – please use this field to give us all information!

Notice

Due to the nature of Raw Nickel, Raw Nickel may contain slight cosemetic defects or abrasions.

Recommendation

We recommend using 2-Conductor With Shield Lead when purchasing a single pickup. 2-Conductor lead allows you to reverse the phase should you have phase issues. Learn About Lead Choice

Lead Time

A Lead Time of 4 Weeks is just an estimate. Lead Times are subject to change depending on the current shop capacity and size of the order. We will always try to complete your order quicker than the stated lead time.


Our Wiring Skills, Your Personality.

Want to learn more about our Prewired Telecaster Control Plate? Here's all the information you'll need:

Prewired Telecaster Control Plate FEATURES:

Our Pre-Wired Telecaster Control Plate is designed by you and built by us. Chrome and Aged Nickel Prewired Control Plates come loaded with the highest quality materials available – from CRL® Switches to CTS® Pots. Of course, all our parts are made in the USA and are assembled and wired by hand in Richmond, VA.

Look & Feel

We offer Chrome Telecaster Control Plates and Aged Nickel Telecaster Control Plates. Aged Nickel Telecaster Control Plates all have a unique patina to them to make them look slightly reliced and older. Due to the aging process, each Aged Nickel Telecaster Control Plate is unique, and no two are alike.

Orientation:

We can wire up your Tele Control Plate a couple of different ways: Normal Orientation and Flipped Orientation.

  • Normal Orientation: With a Normal Orientation Telecaster Control Plate, your switch is closest to the headstock.
  • Flipped Orientation: With a Flipped Orientation, the Control Plate orients with the Switch closest to the Output Jack, and the Volume Pot closest to the headstock. This is great for those who love to utilize volume swells.

Lindy Fralin Pickups Normal Or Flipped Orientation



















Wiring

We can wire up your switch a couple of different ways – here are your options:

  • 3-Way CRL: This will give you normal Telecaster functionality – Bridge Only / Bridge – Neck / Neck Only.
  • 5-Way CRL: This is perfect for Nashville Telecasters, with three pickups.

Pot value:

Choose 250K Pots if you have single-coil Telecaster pickups or pickups that are brighter. 250K pots will make darker sounding pickups too dark and muddy.

Choose 500K Pots if you have Humbuckers, P-90’s, or other dark-sounding pickups. 500K pots will make single-coil Telecaster pickups sound too shrill.


Tone Cap Value:

Read up on our Tone Caps here.

  • .02 mfd sounds excellent on most Fender guitars and will give you a medium roll-off in tone.
  • .05 mfd will offer a much deeper and darker roll-off than .02.
  • Magic Cap: This is a low capacitance cap (.0015 mfd) and only works on the Bridge Pickup only. The effect is extremely subtle – not like a regular cap. It tends to make treble strings sound slightly fatter.

















FAQs

  • Can you wire it up without the Chrome Plate? As it turns out, No. If this matters to you, you can pull out all the wiring once you receive it to put it in your Control Plate. It’s just too time-consuming and unsafe to ship without a solid control plate holding everything together.
  • Can I return my Control Plate? No. Since these are so custom and made to order, all Telecaster Control Plate sales are final, and not available for exchange or return.
  • What if I don’t see what I want? Please use the “Notes” field on the checkout screen to type in any special requests. Use this field to describe how you want it wired as well if you wish to have anything customized. We’ll make it to your specs.

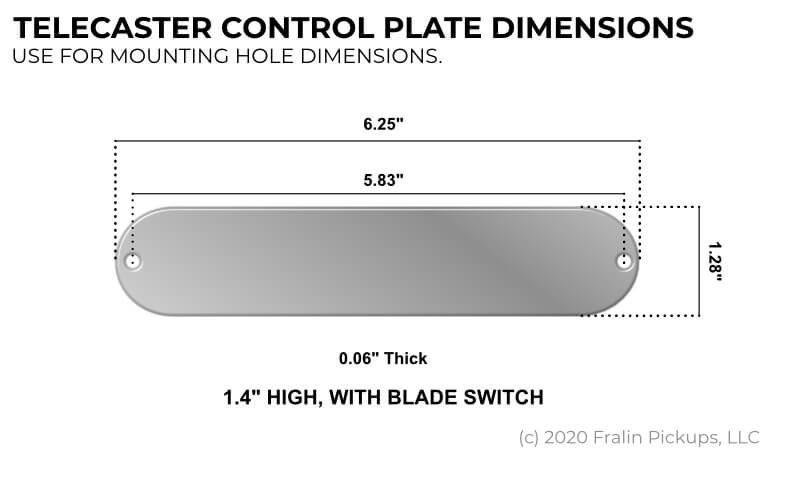

Sizing

Telecaster Control Plate Dimensions



















Installation

Installation is easy, and only takes  a few steps. Check out our in-depth Telecaster Control Plate Installation Guide Below:

Telecaster Control Plate Installation Guide



















Prewired Telecaster Control Plate Questions And Answers:

Notice:

Have a question about our Prewired Telecaster Control Plate? Ask it here. Your Question will be publically visible. If you want to ask a Private Question, please contact us through our Contact Us Form.

If you have multiple questions, please call us at (804) 358-2699.

    I've wired up this control plate, but the tone cap came separately. Where should I wire it in exactly?
  1. Q I've wired up this control plate, but the tone cap came separately. Where should I wire it in exa...... Read more
    A

    Hey Alan, can you email me a photo of your control plate? We may have given you a second one just in case you don't like the one installed. I can take a look at the wiring and let you know.

  2. Can a single P90 guitar (Tele Style) effetively utilize an Esquire (3 position selector) wiring harness without issues?
  3. Q Can a single P90 guitar (Tele Style) effetively utilize an Esquire (3 position selector) wiring h...... Read more
    A

    Hey David, I don't forsee any issues with it at all! Should work just fine. Tyler

  4. is there any way to get a black finished control plate & knobs? how about 2 push-pull volumes for 2 hum buckers, no switch?
  5. Q is there any way to get a black finished control plate & knobs? how about 2 push-pull volumes...... Read more
    A

    Hey Charlie, as it turns out, we don't have a black finish on our control plate. If you find one, you can send it to us and use the "notes" field on the checkout screen to tell us that you're sending the black plate. We'll wire everything in the plate you supply.

  6. The form says, "To speed up your Control Plate, we need to know which tone cap goes where." I don't understand the question. What are my choices?
  7. Q The form says, "To speed up your Control Plate, we need to know which tone cap goes where." I don...... Read more
    A Hey Francis, if you selected the Two Tone Cap modification, please let us know what cap you want in the "Up" position and what cap you want in the "down" position. Otherwise, you can ignore this.
  8. The tone pot bright switch mod states that it removes the volume pot and tone pot, would be possible to add the volume kill switch to same plate as a tone knob bright switch? Additionally would I be able to swap out the selector for a 4 way?
  9. Q The tone pot bright switch mod states that it removes the volume pot and tone pot, would be possi...... Read more
    A

    Hey William,

    As it turns out, we do not have 4-Way blade switches in stock - we only have Series Parallel Push Pull Pot Mod that will accomplish what 4-Way Switching does. This mod takes place of the Tone Pot.

    If you're looking for a Kill Switch for your Volume, keep in mind that we do not have push-push pots, which are pretty standard for a Kill Switch. All we have is Push pull, so it will be (pushed = on, pulled = off).

Note:

Asking a question here will be public to all users of this site

Hey!

Did you already ask a question on our Contact Us Form? Don't ask it again here. Please be patient while we get back to you.

Send me a notification for each new answer.

CUSTOMER REVIEWS

135 Genuine Reviews for Prewired Telecaster Control Plate

  1. Ryan Nield
    Verified Buyer

    If the Telecaster sitteth on top of the mountain…This control plate makes it the supreme being! An absolute work of art. Mine is set up with a push pull 4way on the volume pot and 2 tone caps on the tone pot as well as the treble bleed circuit. This thing provides tonal options for days. When I opened it up I realized that I would not be doing the soldering as the there is a lot more going on with the push pull pots. The soldering is absolutely impressive and the wire routing is perfect. I ended up taking it to my luthier who was also very impressed with the quality and the straight forwardness of the install with the labeled wires. I paired it with a set of Frailin Blues Specials and there’s just no looking back. Surprisingly my amp is more tunable as well. Don’t waste your money with the custom shop. Just upgrade with Frailin products!

  2. Daniel Bellow
    Verified Buyer

    Five drops of solder on clearly labeled connections, and works exactly as advertised.

  3. Mike S.
    Verified Buyer

    I decided to be a bit lazy this time and just buy a completed control kit. Everything works perfectly. If I had to give a minor complaint, it would be two things. 1. I think the helper wires that are soldered are not needed and can slow things down. They were a bit messy and I needed to clean the contact areas a bit. No big deal. Cool idea though. 2. This might be me being OCD, but the volume and tone knobs have more play than I would like I like to have a little bit of resistance with my knobs, but I know there are two camps when it comes to that opinion. all that said, I am a Fralin user for life.

  4. Peter Morash
    Verified Buyer

    I bought a control plate for my telecaster and it arrived with all the bells and whistles i asked for. It looks good and will sound even better when the guitar is completed

  5. Jaime McEwen
    Verified Buyer

    Hey there. I inquired about a pre wired control for my single/humbucker tele a while back. Whoever got back to (deleted the message unfortunately) was spot on with his recommendations. He hit every point I was looking for out of the park. It’s like I have a new guitar. Never sounded better!!!! Kudos to your team over there. You earned yourself a new customer for sure. Btw the install was a breeze. Even for a knucklehead such as myself. Looking forward to more fralin products in the future.

More Reviews:

Add a review

Leave a review for our Prewired Telecaster Control Plate

Your email address will not be published. Required fields are marked *

NOTES ON FINISH:
  • Aged Control Plates are aged by hand and feature slight defects and a raw look. We cannot guarantee that the plate you receive will look like our photos - they are all unique.
  • We cannot guarantee finish matching of the plate and knobs perfectly. Because of this, we cannot provide a return to you if you are unhappy with the finish matching of our Prewired Telecaster Control Plate.
HARNESSES:
  • Our parts and wire lengths are designed to work seamlessly with our Prewired Telecaster Control Plate. Due to various guitar and instrument designs, we cannot guarantee that our parts will fit properly, and due to this, we do not offer Wiring Harnesses.
