Output Jacks
Rewiring your guitar? Jack going bad? Grab one of these. Your Output jack is the last “pit-stop” of your guitar: make it a quality one.
Quick Links
Jump to more info
High performance, great tone.
Want to learn more about our Output Jacks? Here's all the information you'll need:
Features

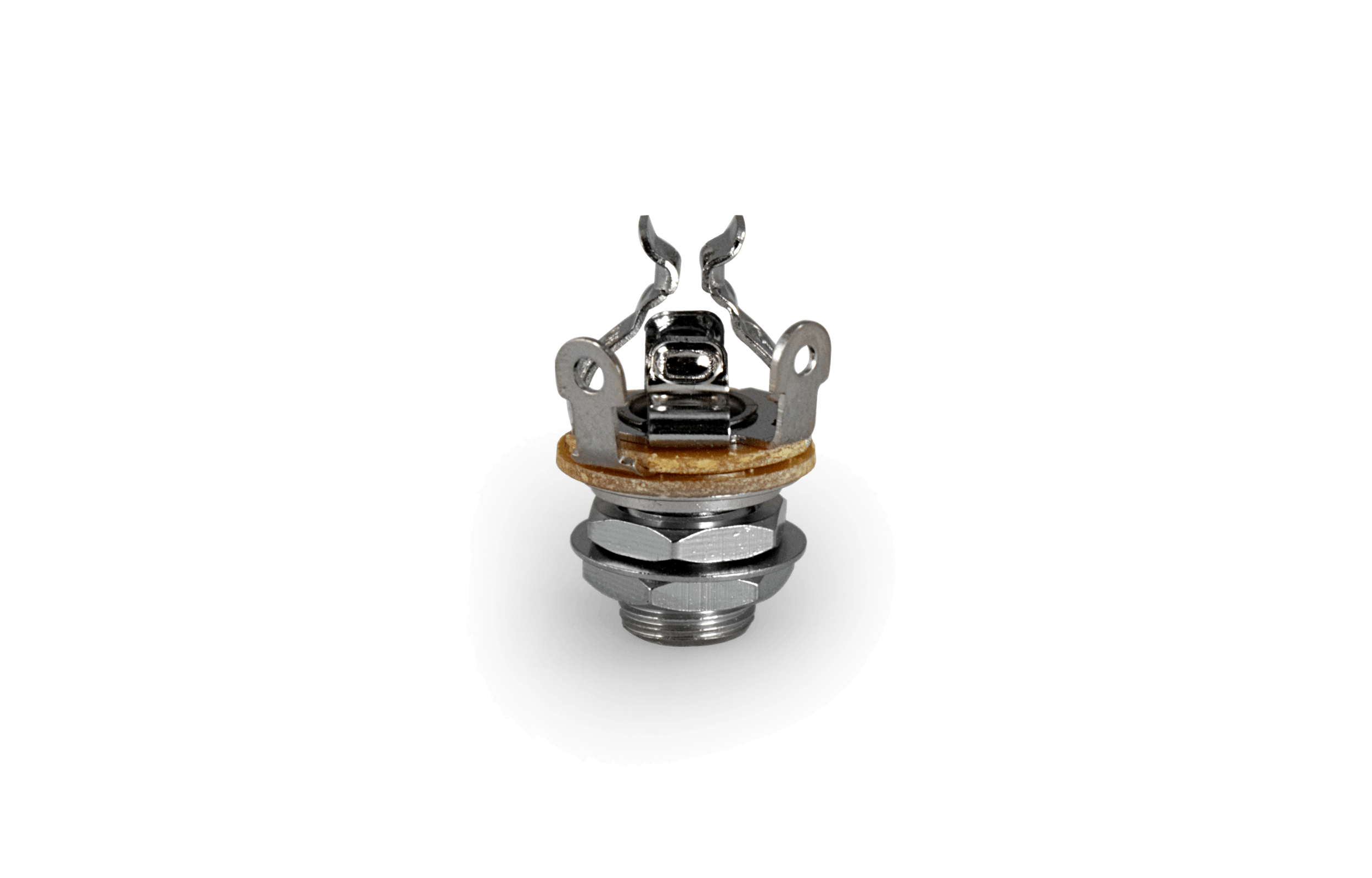

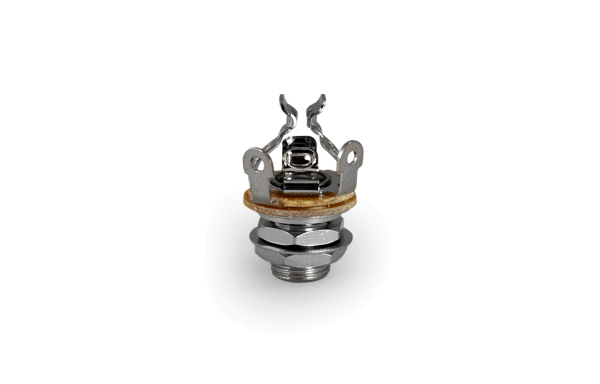

The Switchcraft 1/4″ Output Jack is the standard of the industry. The PureTone 1/4″ Jack is the new kid on the block, with some cool upgrades.
The PureTone Jack features 4 total points of contact enhanced cable security and a stronger signal.
Installation
Installing the jack is very simple, but there’s a few important steps to perform before you begin. Before you install, it’s important to do two things: 1.) pre-tin your terminals, and your wire. 2.) put a kink in the tip of your wire to create a mechanical connection. Creating a mechanical connection will ensure a strong connection.
TO INSTALL:
- Install your White wire on your Tip terminal.
- Install your Black wire on your Sleeve Terminal
- Give yourself a pat on the back
Tech Specs:
| SPECIFICATION | VALUE |
|---|---|
| Jack Type: | Mono |
| Includes Hardware: | Yes |
| Barrel Diameter: | 1/4" |
| Threads: | 3/8 x 32 |
| Thread Length: | 1/4" Long |
| Required Hole Diameter For Mounting: | 3/8" |
Builders Love Our Output Jacks
These are just some of our talented builders that use our Output Jacks
Customer Reviews
2 Genuine Reviews for Output Jacks
-
Great replacement
I was restoring a ’67 Fender Mustang that didn’t quite have all the pieces. I was glad to see that for a few dollars more, I could have this quality output jack thrown in with my pickup order. Looks and fits just like the original.
-
Perfect
Super high quality jack, just what I needed to finish wiring my guitar!
