Telecaster With Phase Reverse

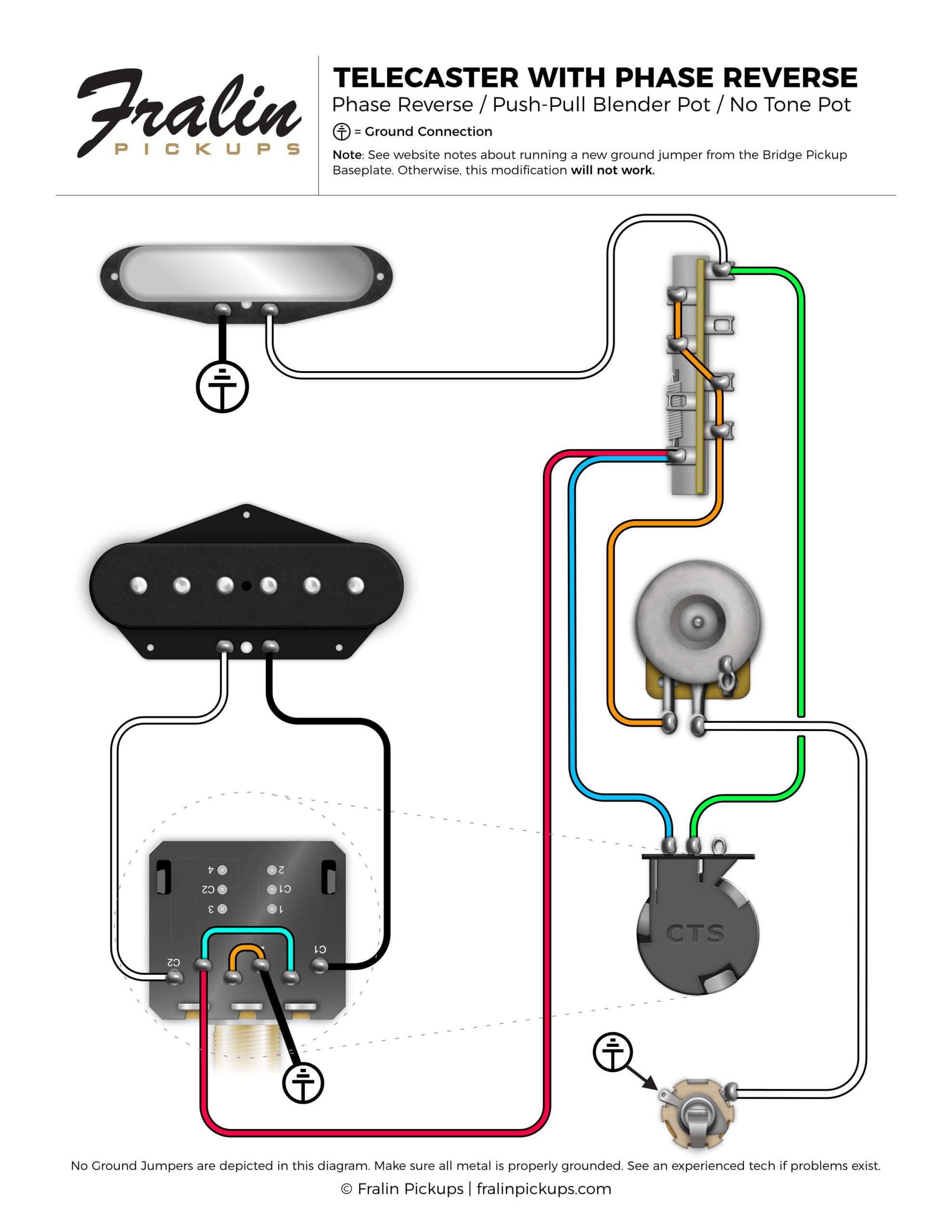

Telecaster With Phase Reverse Diagram Notes:

More information regarding this wiring diagram:

This Telecaster Wiring Diagram feature a Fralin Push Pull Blender Pot to phase reverse a Tele pickup to get out of phase tones, and blend them together with the Blender Pot! This allows you to blend the “out of phase” tone subtly, instead of it being 100% out of phase.

This Telecaster Wiring Diagram features a Fralin Push Pull Blender Pot doing two things –

Blending the pickups
Phase Reverse Switch

In order for the modification to work properly, you must do two things to the Bridge Pickup:

Sever the ground jumper connecting the black wire and the Baseplate
Run a new wire from the Baseplate to Ground (casing of volume pot)

In the down position, you can use the Blender Pot like normal. In the up position, the Bridge pickup’s phase is reversed and the blender pot allows you to dial in the amount of “out of phase” sound.

Watch Our Quick Tip:

How to use a Blender Pot

The Blender Pot is one of our favorite mods to use on the guitar. It’s simple and affordable, but we get a lot of questions how they work and what they do – check out this short video!

Download

Download this wiring diagram and save it to your computer.

Download This PDF

If you ordered a Prewired Pickguard or Control Plate from us, the wiring you received may not match the diagram on this page.

Most of our diagrams don't depict ground wires. Make sure all metal is properly grounded to ensure correct operation.
