Telecaster With Blender Pot & Master Tone

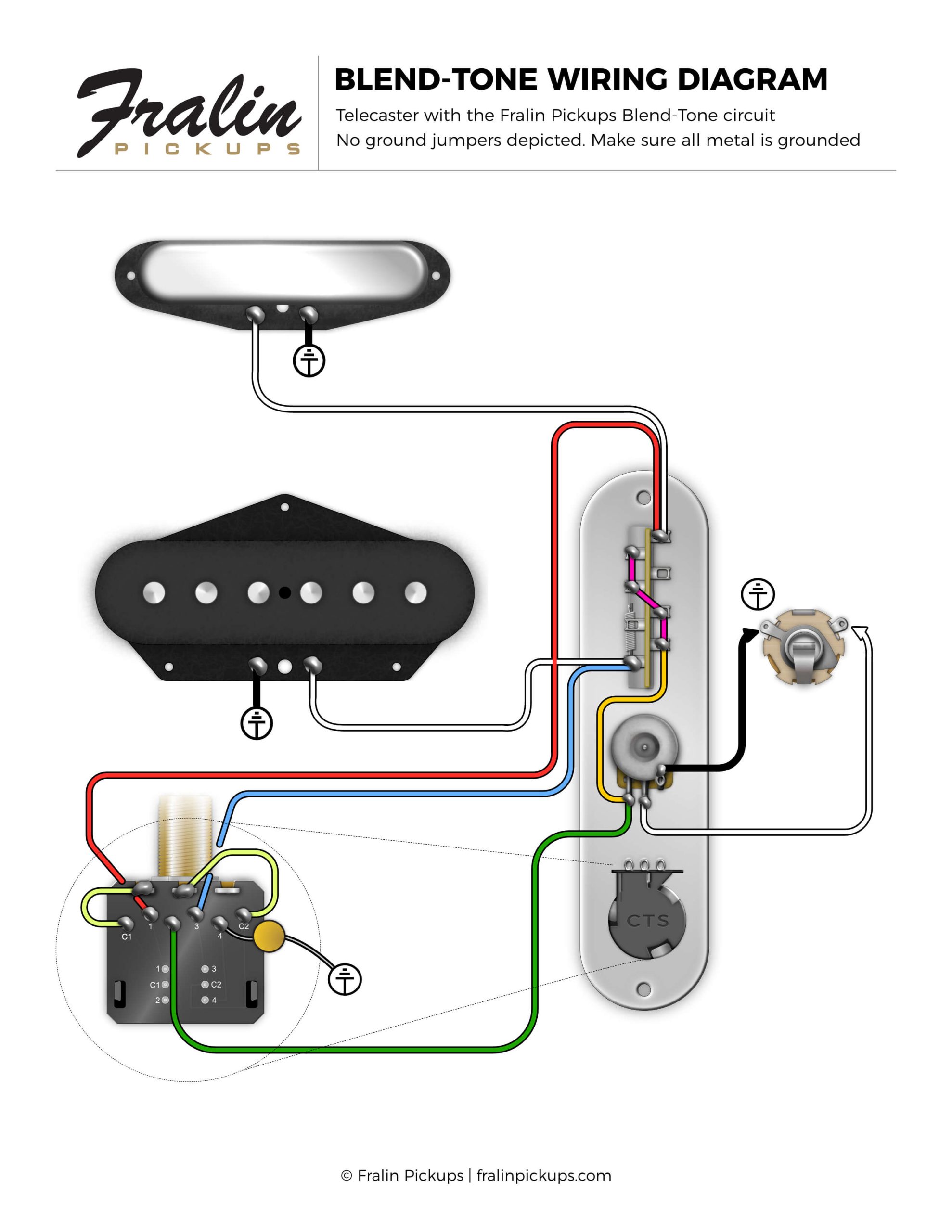

Traditional Tele Wiring with Blender Pot & No-Load Tone Pot
Notes on this Telecaster With Blender Pot & Master Tone Diagram:
More information regarding this wiring diagram:

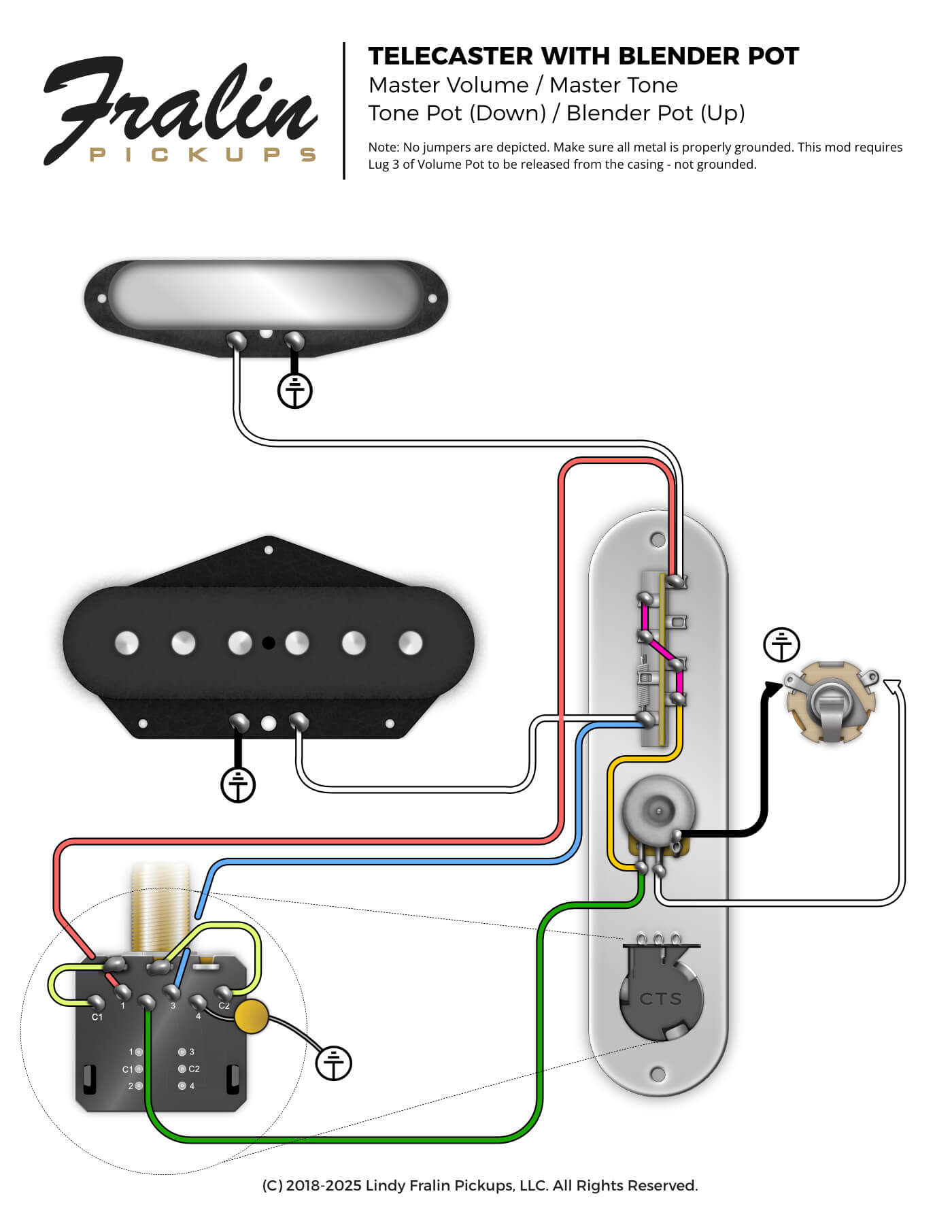

Finally! A Telecaster with Blender Pot and Master Tone! This wiring diagram features traditional Telecaster wiring with a Blender Pot and Master Tone! Using our Push-Pull Blender Pot, you can now achieve a standard Traditional Telecaster wiring with a No-Load Tone Pot in the “down” position and a Blender Pot in the “up” position.
Here’s how this Blender Pot Tele wiring diagram works: In the “down” position of the Push-Pull pot, it’s a normal Telecaster with one bonus: a no-load tone pot. However, pulling up on the Push-Pull pot, the Tone Pot becomes a Blender Pot. This Telecaster wiring diagram is one incredibly versatile version.
Download
Download this wiring diagram and save it to your computer.
Have someone in mind that our wiring diagram will help? Share it here!
