Telecaster 4-Way Switching – Push Pull

Telecaster Wiring Diagram with Series Parallel Push Pull Pot mod

If you ordered a Prewired Pickguard or Control Plate from us, the wiring you received may not match the diagram on this page.

Most of our diagrams don't depict ground wires. Make sure all metal is properly grounded to ensure correct operation.

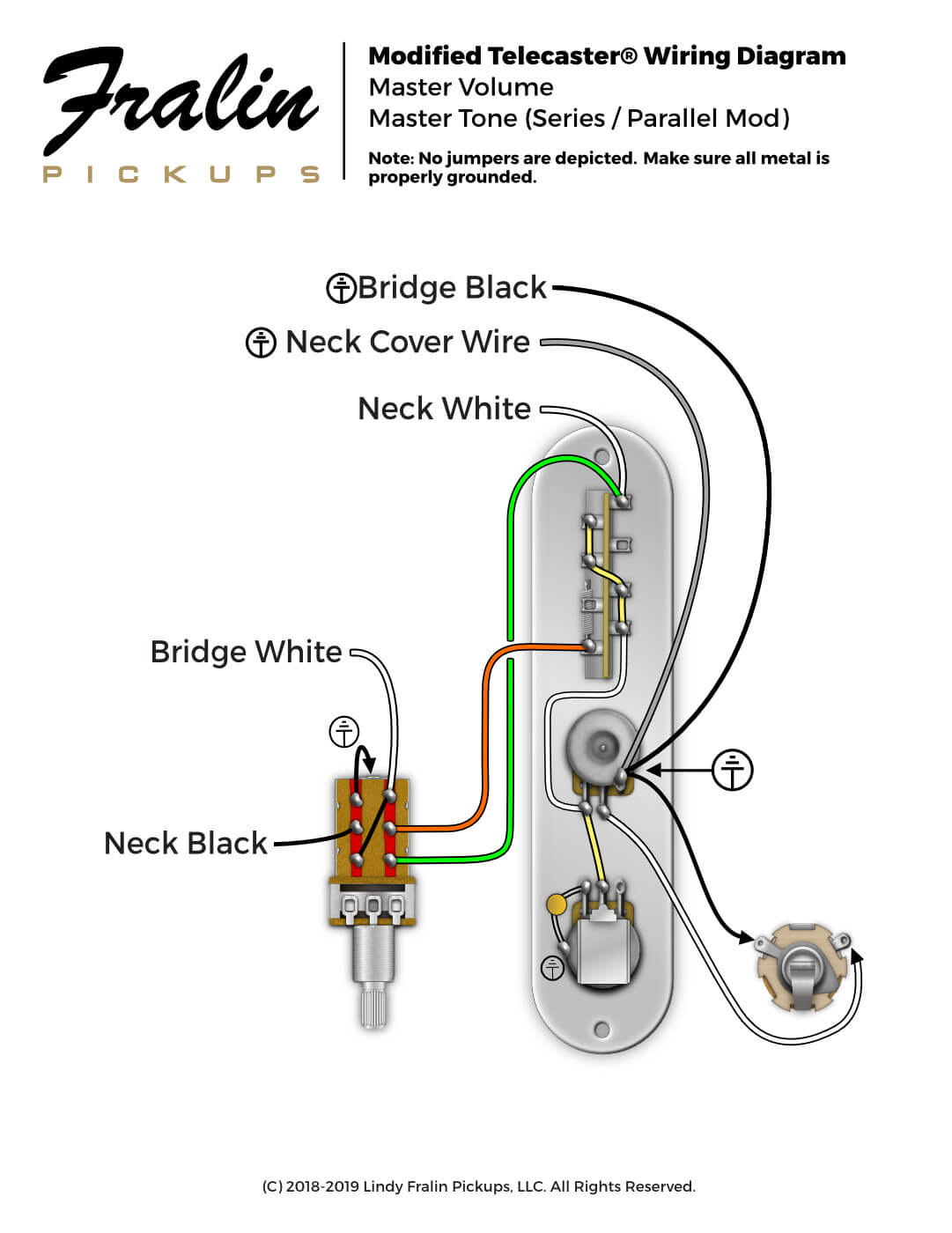

4-Way Switching with Push Pull Wiring Diagram

Notes on this Telecaster 4-Way Switching – Push Pull:

More information regarding this wiring diagram:

This wiring diagram for Telecaster features 4-Way Switching, but with a Push-Pull pot instead of a 4-way blade switch. The benefit of this modification is that you can achieve the “Series” sound anywhere on the guitar instead of trying to select it on the Blade Switch. You simply pull up on the Push-Pull pot and it engages the “Series” sound.

More information here: 4-Way Switching With A Push-Pull Pot
