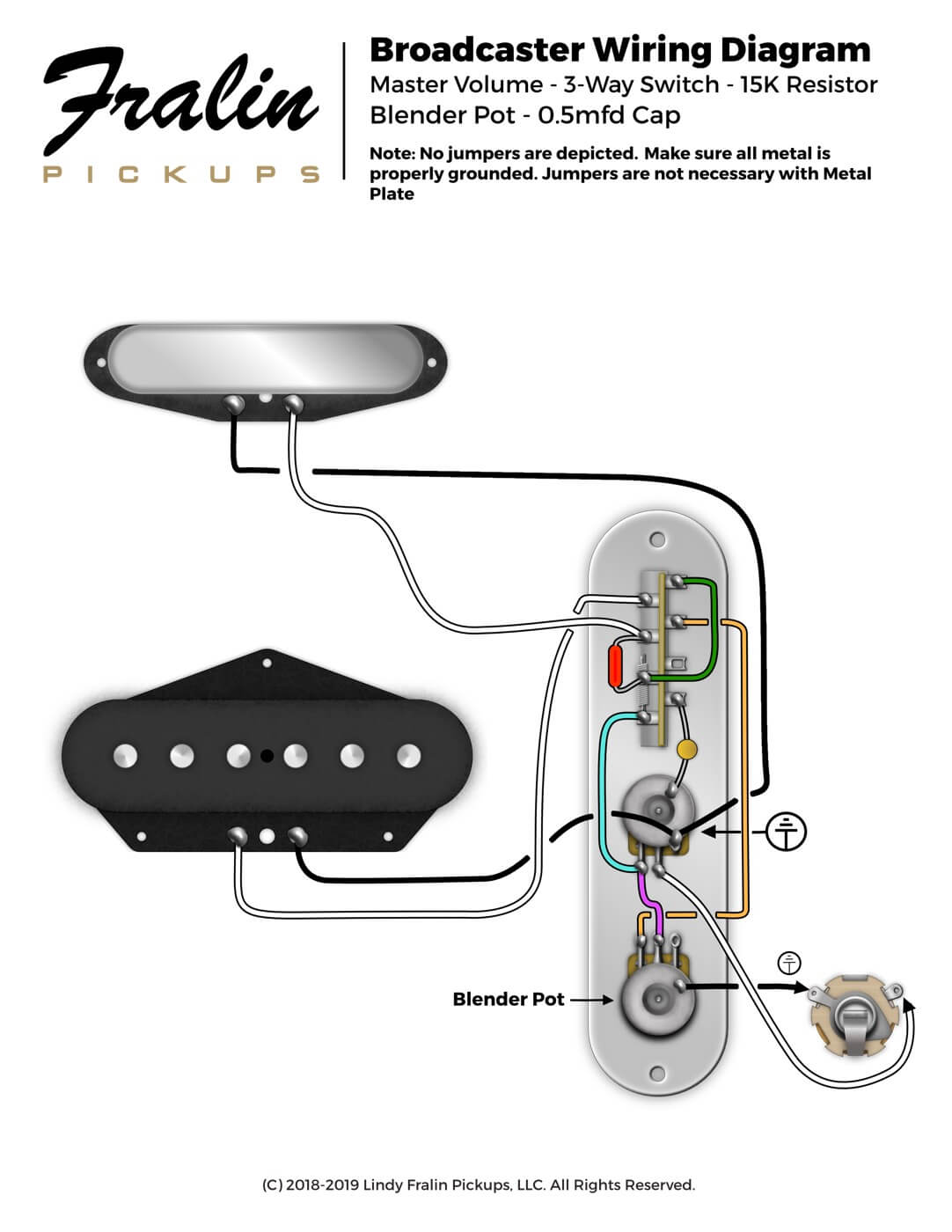

Broadcaster Wiring Diagram
Broadcaster Wiring
A note on Prewired Orders and Grounding:
Notes on this Broadcaster Wiring Diagram:
More information regarding this wiring diagram:
Similar to the Esquire Wiring, the Broadcaster now introduces a Neck pickup as well as a Blender pot for the following positions:
- Position 1: Bridge Pickup with Blender Pot
- Position 2: Neck Pickup Only
- Position 3: Neck Pickup Only with Cap (Dark tone)
The Blender Pot gradually brings in the Neck Pickup for a wide sweep of tonal variation – super cool! For the resistor and capacitor value, we’ve seen a few different values – 15k for the resistor, and 0.05mfd for the capacitor. That said, you can certainly experiment with the capacitor value. 0.05mfd is very dark and to some, unusable in a modern setting. Going with a lower capacitance value will not darken your tone as much and make it more musical.
