Blender Pot Stratocaster Wiring Diagram

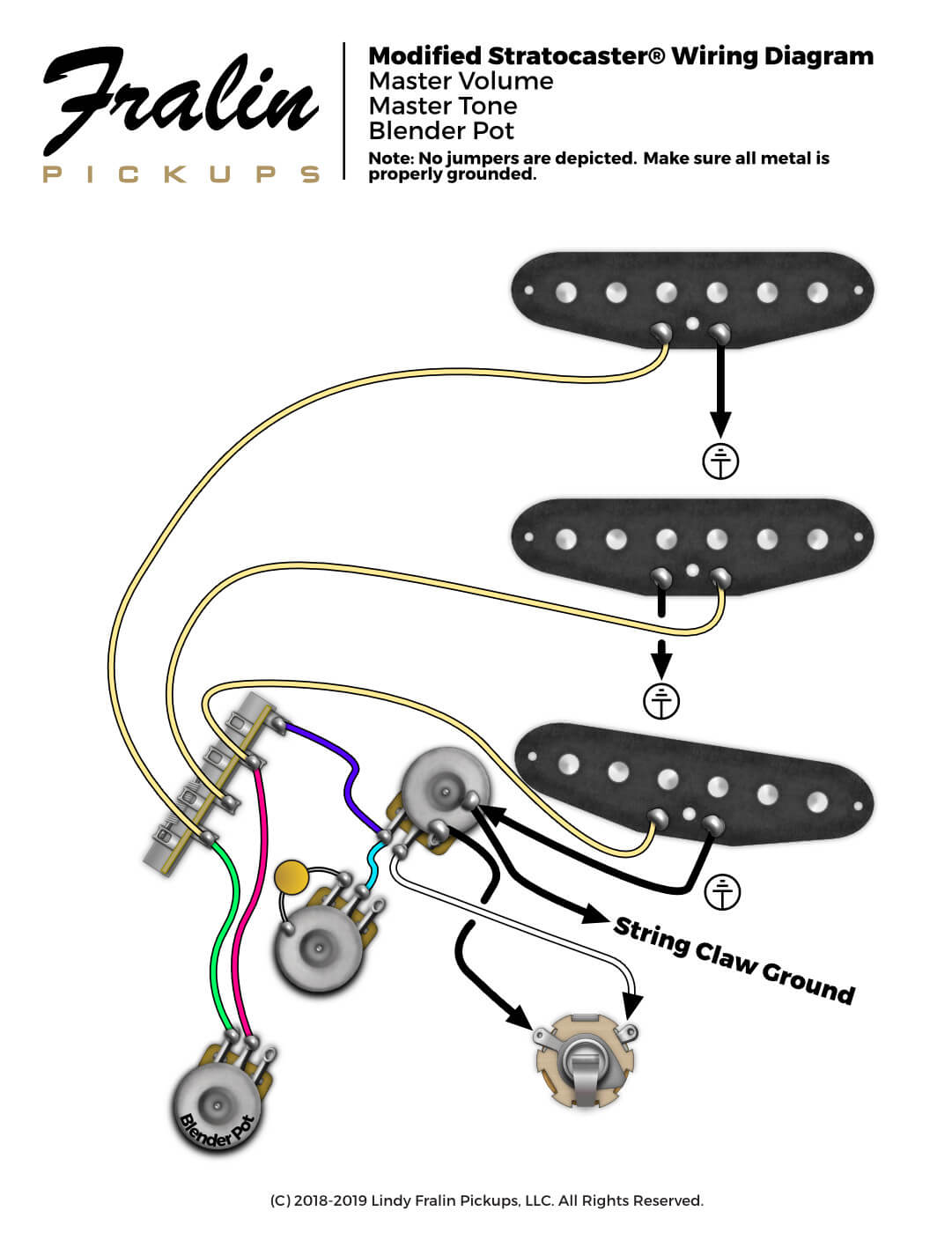

Modified Stratocaster Diagram with a Blender Pot

If you ordered a Prewired Pickguard or Control Plate from us, the wiring you received may not match the diagram on this page.

Most of our diagrams don't depict ground wires. Make sure all metal is properly grounded to ensure correct operation.

Notes on this Blender Pot Stratocaster Wiring Diagram:

More information regarding this wiring diagram:

In this diagram, the Blender Pot allows you to achieve “Telecaster” tones by combining the Neck and Bridge together. This is the “Fralin Pickups Wiring” that we use on our Prewired Strat Pickguards!

Download:

Download this wiring diagram and save to your computer

Download Wiring Diagram PDF
