Misc. Fender® Wiring Diagrams

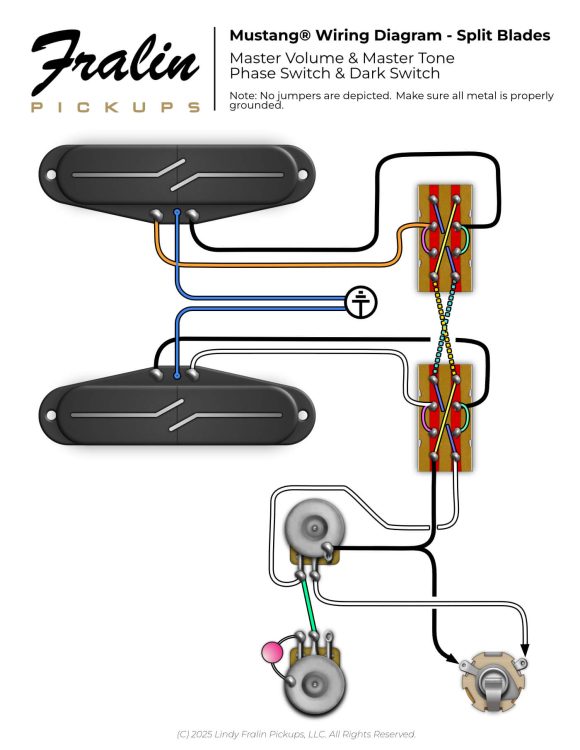

Fralin Mustang Split Blade Wiring Diagram

Mustang Wiring Diagram – Split Blades

Our Split Blades feature a “3rd Wire” wiring configuration (indicated by the Blue wire). These Blue wires need to be grounded.

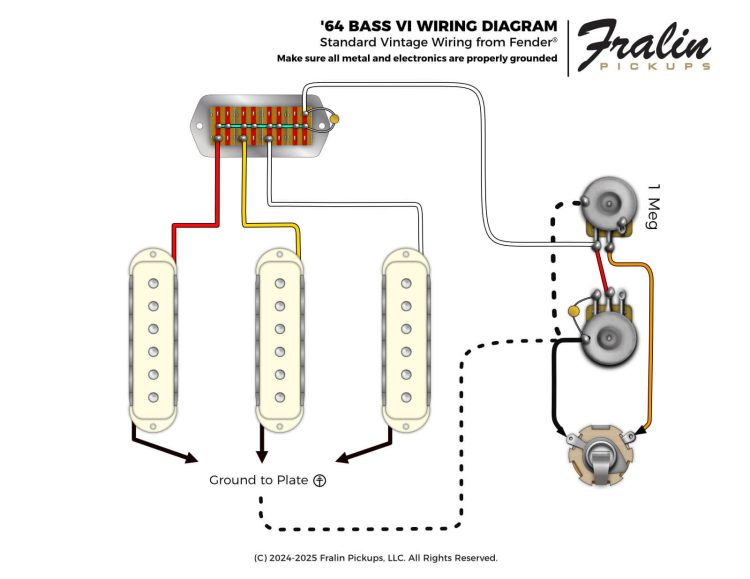

Fender Bass VI Wiring Diagram

Bass VI Wiring Diagram

Features Fralin Bass VI pickups and standard Fender Bass VI wiring.

Fralin Jazzmaster Diagram

Jazzmaster Wiring Diagram

Features two Fralin Jazzmaster pickups and standard Fender Jazzmaster wiring.

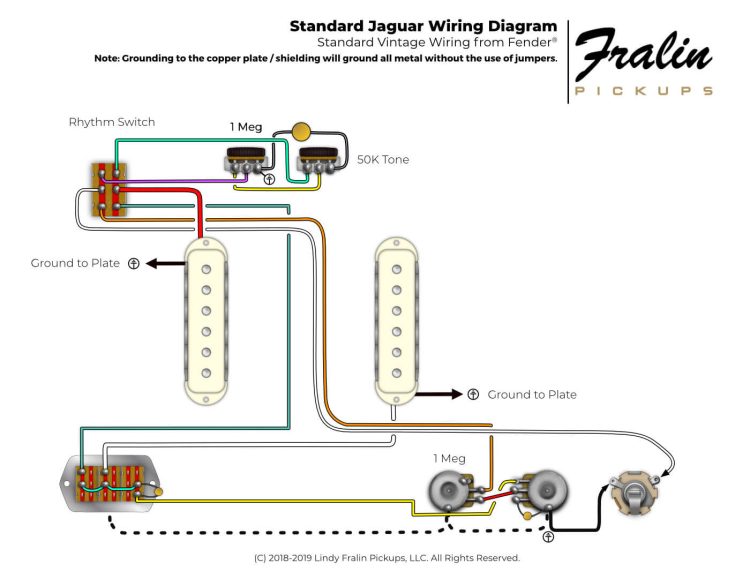

Fralin Jaguar Diagram

Jaguar Wiring Diagram

Features two Jaguar Pickups and traditional Fender Jaguar wiring.

Fralin Mustang Wiring Diagram

Mustang Wiring Diagram

Features two Mustang Pickups.
