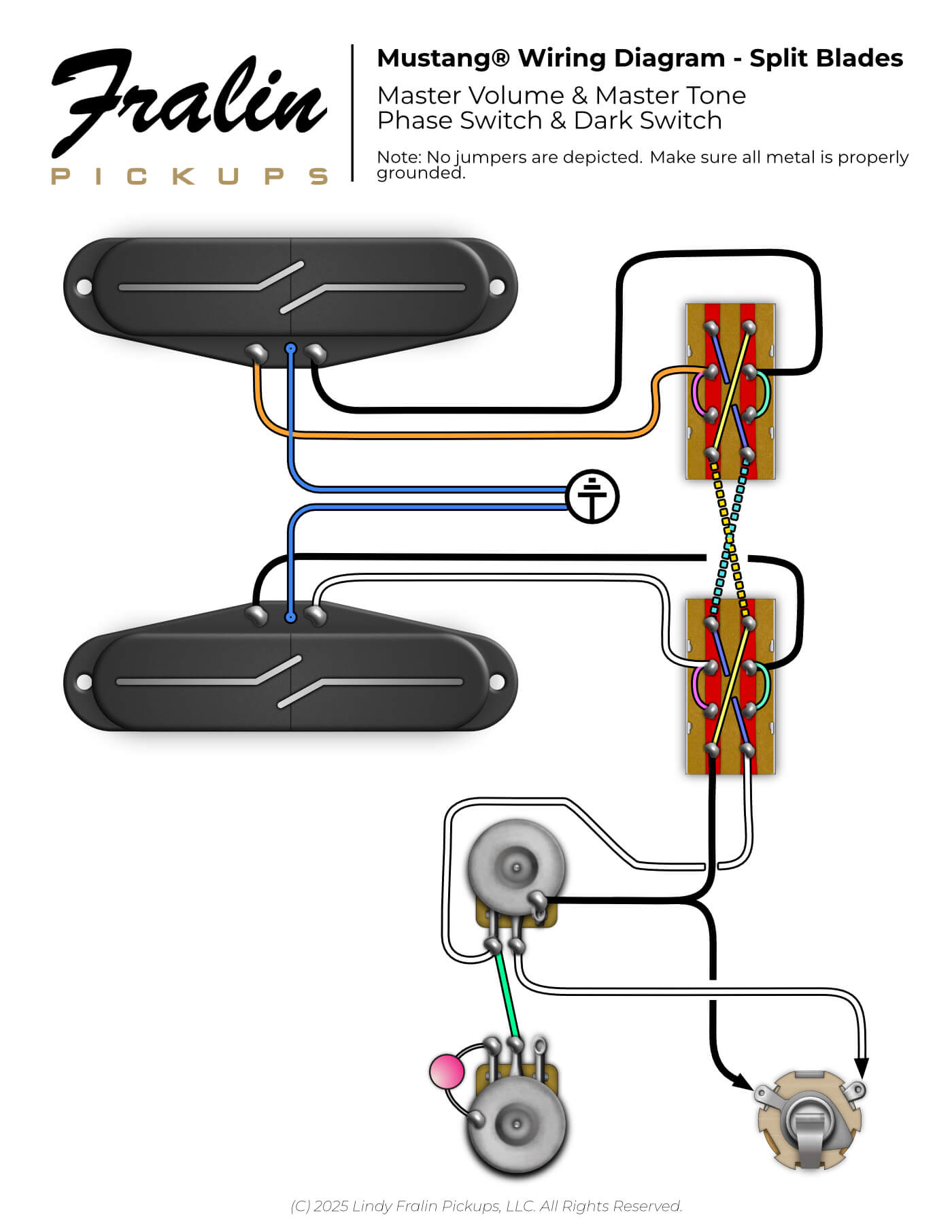

Mustang Wiring Diagram – Split Blades

How to wire up Fralin Split Blades in a Mustang format.

Mustang Wiring Diagram – Split Blades Notes:

More information regarding this wiring diagram:

Our Split Blades feature a “3rd Wire” wiring configuration (indicated by the Blue wire). These Blue wires need to be grounded.

Download this wiring diagram and save it to your computer.

If you ordered a Prewired Pickguard or Control Plate from us, the wiring you received may not match the diagram on this page.

Most of our diagrams don't depict ground wires. Make sure all metal is properly grounded to ensure correct operation.
