Telecaster Deluxe Wiring Diagram

Telecaster Deluxe Wiring Diagram with two Wide Range Humbuckers and Gibson Lead

If you ordered a Prewired Pickguard or Control Plate from us, the wiring you received may not match the diagram on this page.

Most of our diagrams don't depict ground wires. Make sure all metal is properly grounded to ensure correct operation.

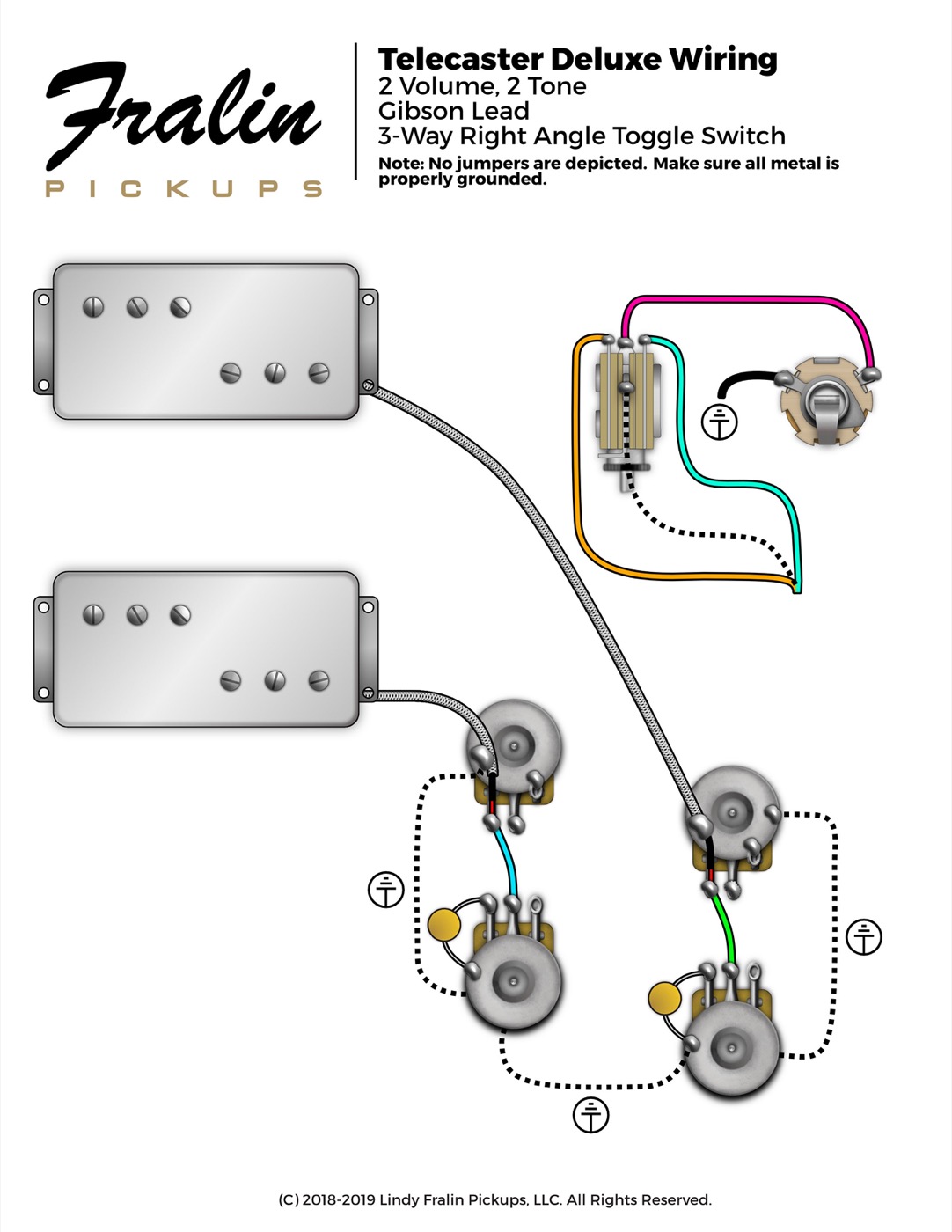

Telecaster Deluxe Wiring Digram Featuring Gibson lead

Notes on this Telecaster Deluxe Wiring Diagram:

More information regarding this wiring diagram:

A Telecaster Deluxe wiring diagram featuring two tones, two volumes, and a 3-way toggle switch. This wiring diagram features Gibson Braided Lead.

Download:

Download this wiring diagram and save to your computer

Download Wiring Diagram PDF
