Nashville Telecaster Wiring Diagram

Nashville Telecaster Wiring Diagram

A note on Prewired Orders and Grounding:

If you ordered a Prewired Pickguard or Control Plate from us, the wiring you received may not match the diagram on this page.

Most of our diagrams don't depict ground wires. Make sure all metal is properly grounded to ensure correct operation.

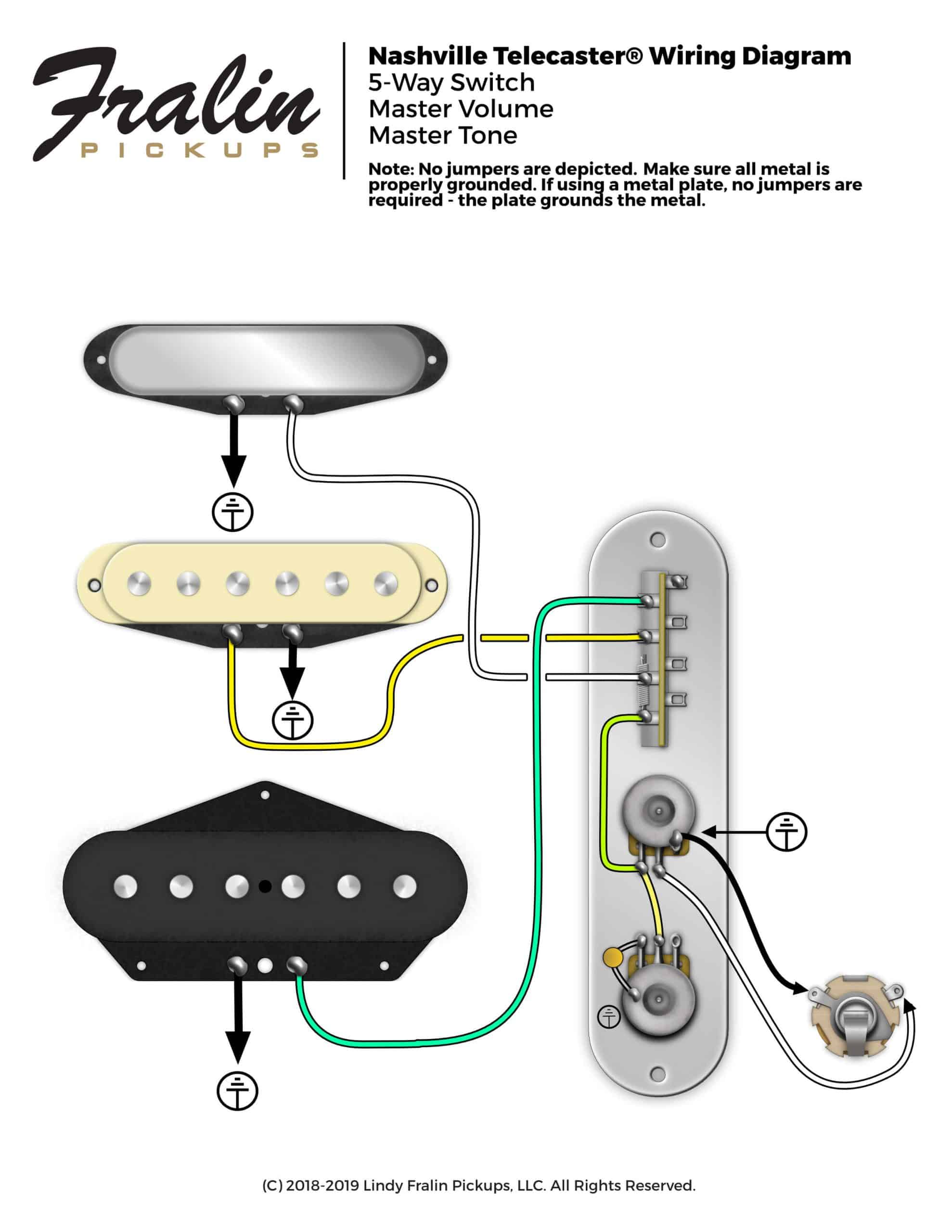

Nashville Tele Wiring Diagram

Notes on this Nashville Telecaster Wiring Diagram:

More information regarding this wiring diagram:

Here’s how to wire up a Nashville Telecaster, using a 5-way blade switch. If you’re trying to convert your current Telecaster to a Nashville Telecaster, make sure you read our article on this subject before you perform the mod – there’s a few things to know about polarity.

More information: The Nashville Tele Problem

Download:

Download this wiring diagram and save to your computer

Download Wiring Diagram PDF
