HH Wiring Diagram

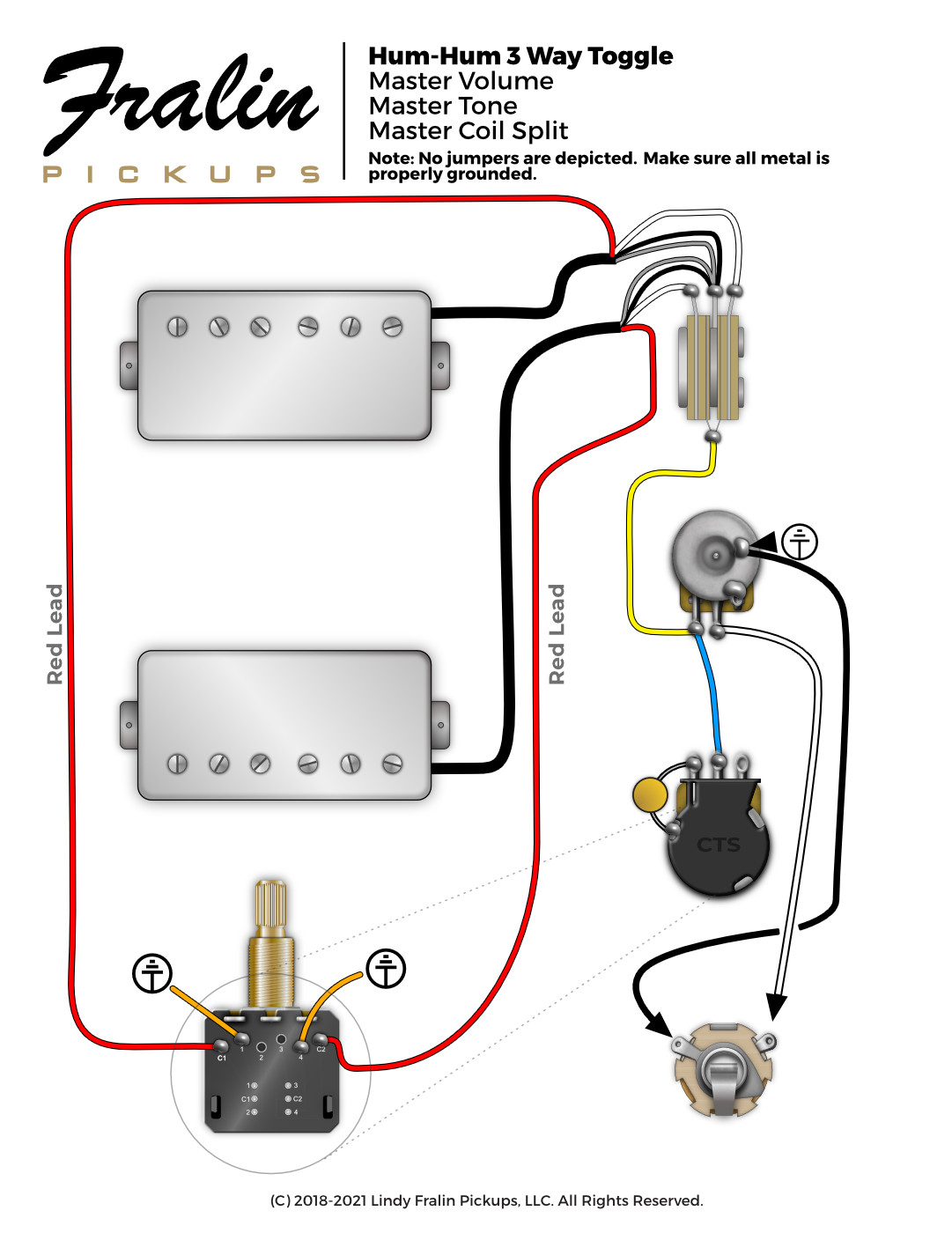

Two humbucker wiring diagram with 3-Way Toggle Switch and Master Coil Split

If you ordered a Prewired Pickguard or Control Plate from us, the wiring you received may not match the diagram on this page.

Most of our diagrams don't depict ground wires. Make sure all metal is properly grounded to ensure correct operation.
