Gibson Les Paul Wiring Diagram with Master Tone

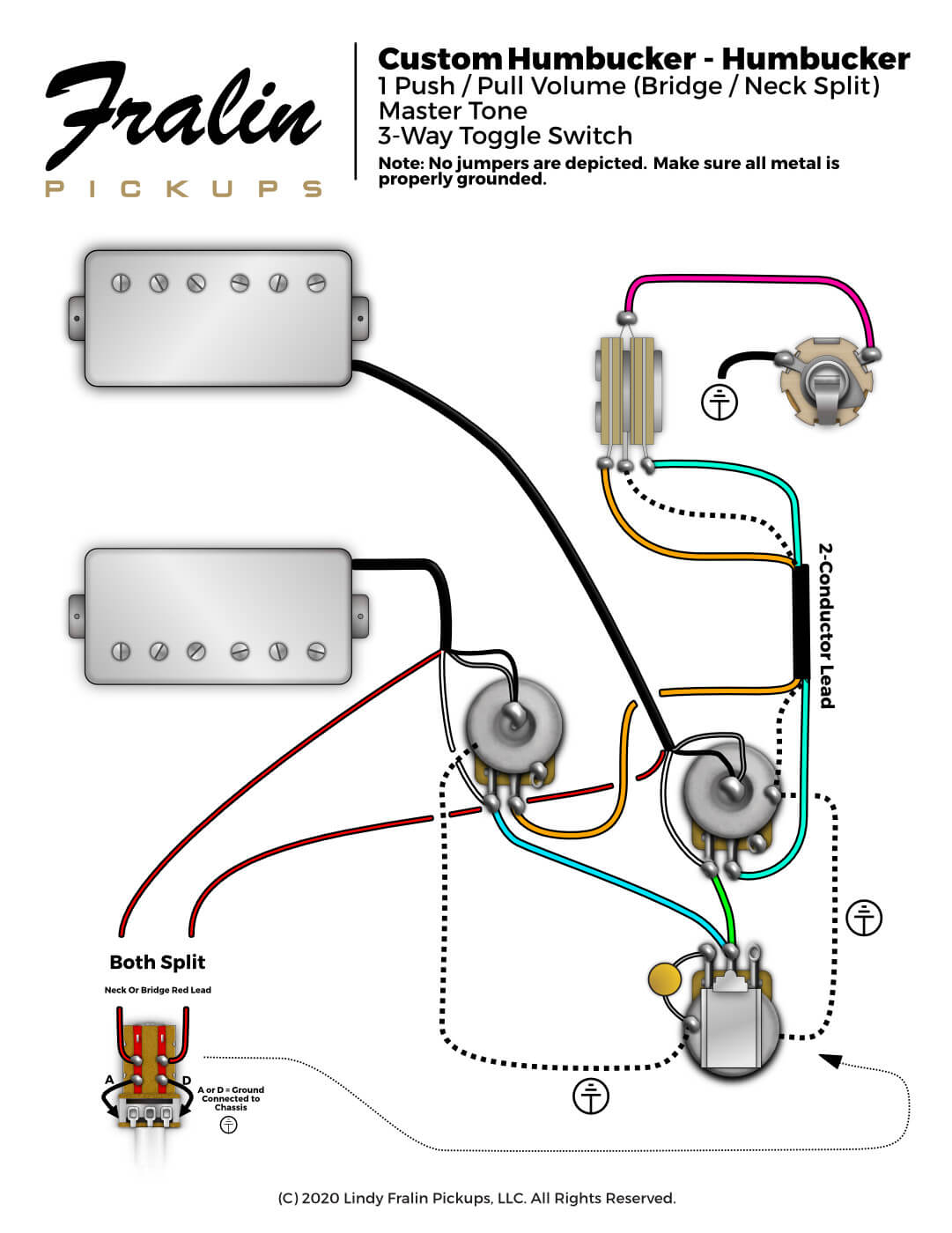

Gibson Les Paul with Master Tone and Master Coil Split

If you ordered a Prewired Pickguard or Control Plate from us, the wiring you received may not match the diagram on this page.

Most of our diagrams don't depict ground wires. Make sure all metal is properly grounded to ensure correct operation.

Notes on this Gibson Les Paul Wiring Diagram with Master Tone:

More information regarding this wiring diagram:

Download:

Download this wiring diagram and save to your computer

Download Wiring Diagram PDF
