Gibson Les Paul Wiring (Coil Split)

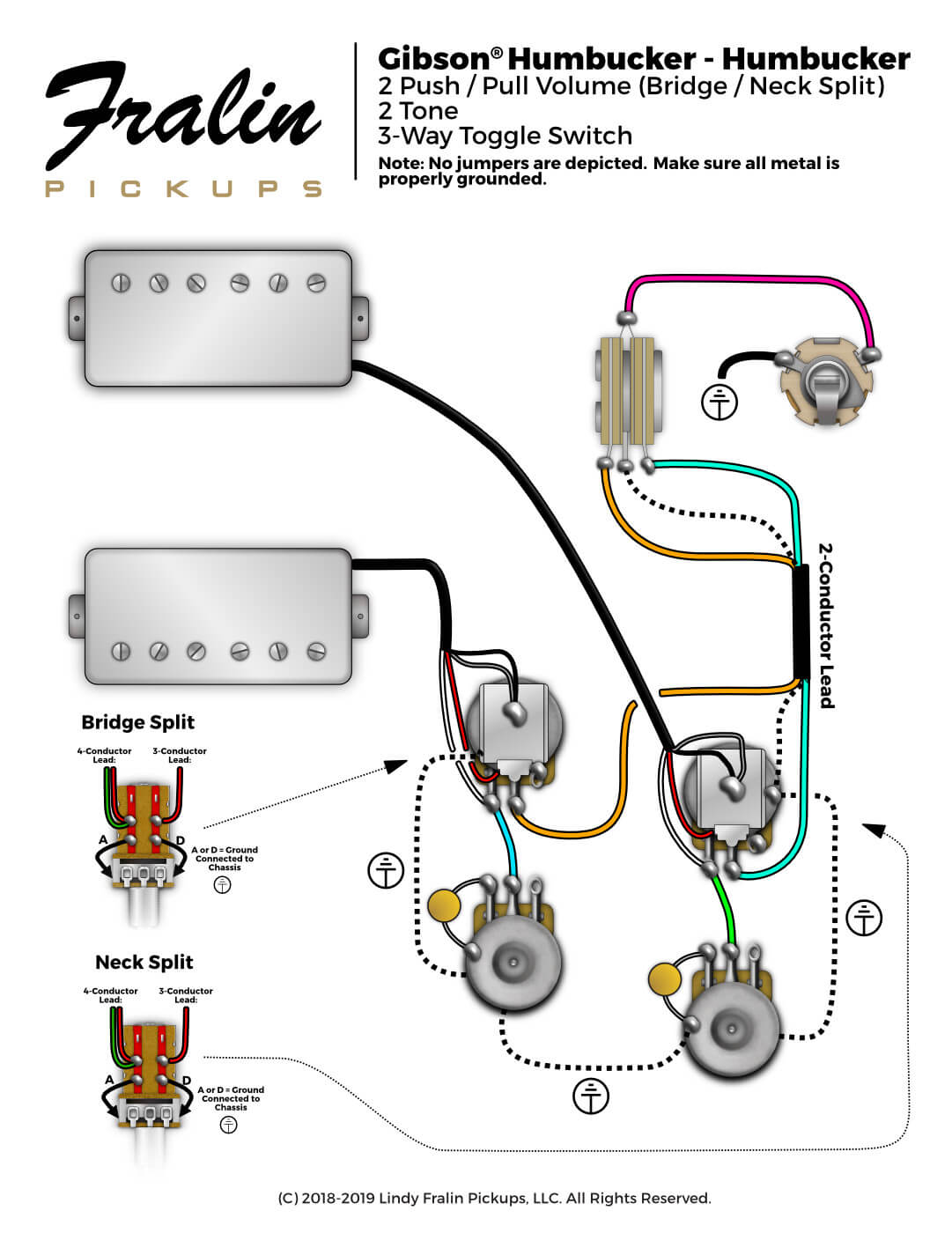

Gibson Les Paul With Coil Split — Gibson Les Paul Wiring Diagram with Dual Coil Splits

Prewired Orders If you ordered a Prewired Pickguard or Control Plate from us, the wiring you received may not match the diagram on this page.

A Note On Grounding: Most of our diagrams don't depict ground wires. Make sure all metal is properly grounded to ensure correct operation.

Download:

Download this wiring diagram and save to your computer

Download Wiring Diagram PDF
