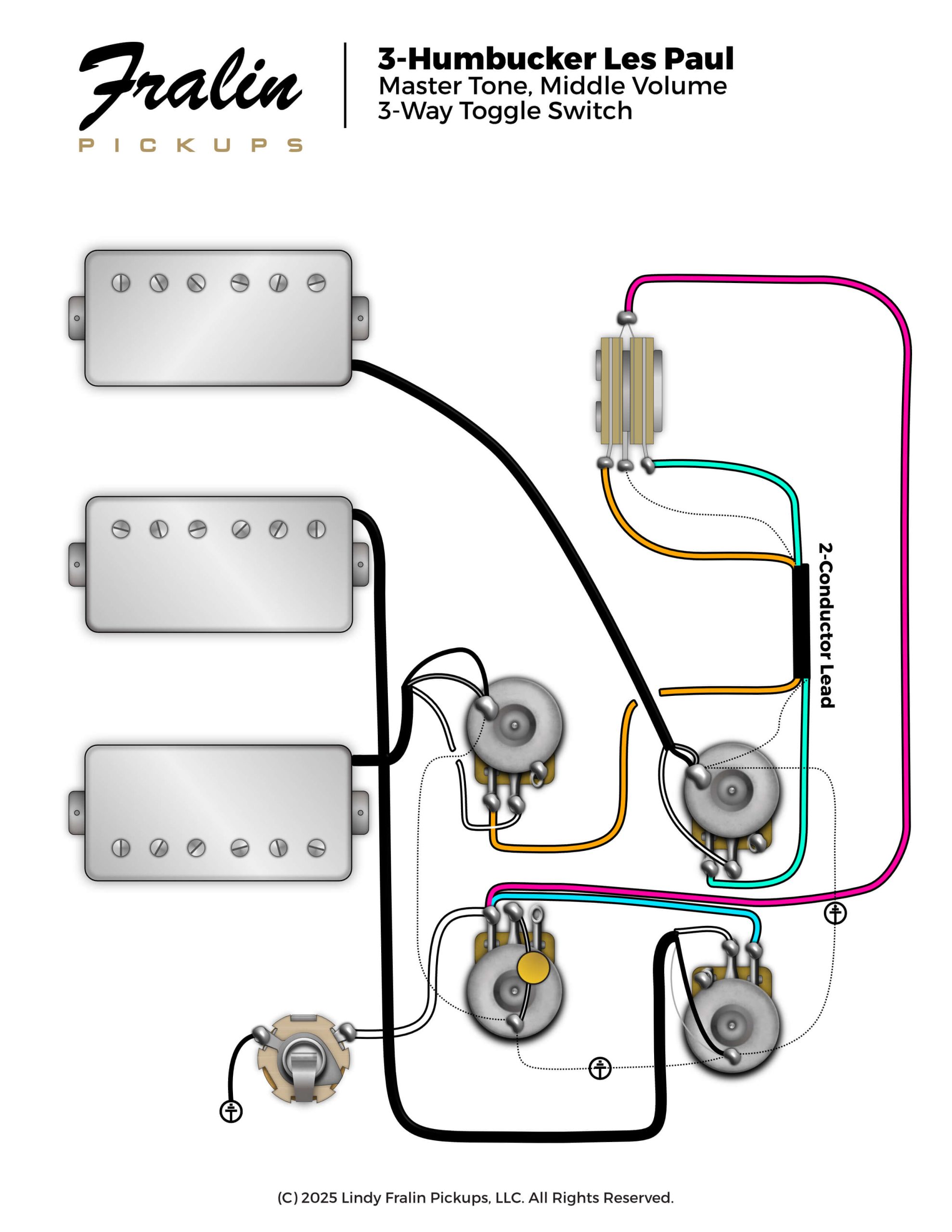

3 Humbucker Les Paul Wiring Diagram

A Les Paul wiring diagram with 3 Humbuckers.

Notes on this 3 Humbucker Les Paul Wiring Diagram:

More information regarding this wiring diagram:

Download

Download this wiring diagram and save it to your computer.

Download This PDF

If you ordered a Prewired Pickguard or Control Plate from us, the wiring you received may not match the diagram on this page.

Most of our diagrams don't depict ground wires. Make sure all metal is properly grounded to ensure correct operation.
