Installing a Baseplate on your guitar will increase the power and bass of your Strat’s bridge pickup. We do all the work for you, all you have to do is follow some simple instructions below for installation.
ADD POWER AND BASS TO YOUR STRAT’S BRIDGE.

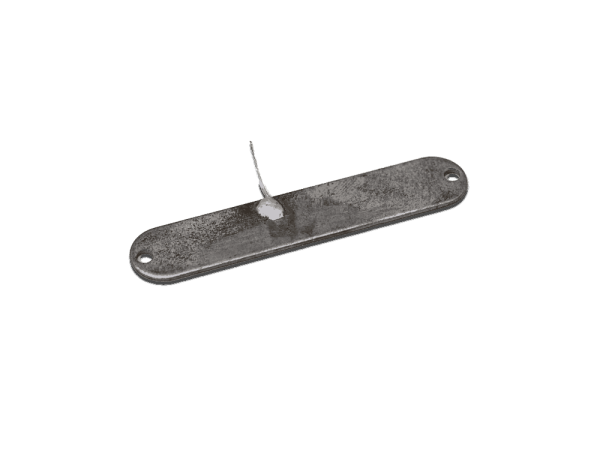

The Fralin Prepped Baseplate can install on most Fender-style Strat Pickups. It will not work on pickups with bar magnets or steel screws. This Baseplate will not work on the following products: Split Blade® Strat, Steel Pole 43 Strat, Steel Pole 42 Strat, Split Steel Pole Strat.
The Prepped Baseplate is easy to install. All you need is the following:
- High-Powered Soldering Pencil
- Wire Cutter

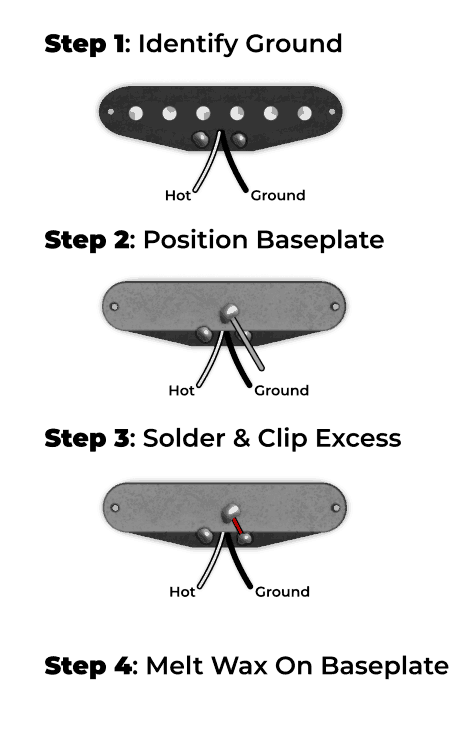

To install, start by identifying the ground connection of your Bridge Pickup. On most pickups, the ground connection is where the Black Lead connects to (Step 1). Position the baseplate on the back of the Bridge Pickup and line up the ground wire with the ground eyelet on the back of the pickup (see Step 2). Using your soldering iron, solder the grounding lead to the eyelet, and clip off the excess grounding lead.
Be careful not to ‘overcook’ the eyelet. Your iron should be hot enough to ‘flow’ the solder quickly.
Lastly, you’ll need to melt the wax on the baseplate. You can do this a few different ways, but the easiest is to use your soldering pencil to heat the baseplate up enough to flow the wax. Let the baseplate cool and cure.
